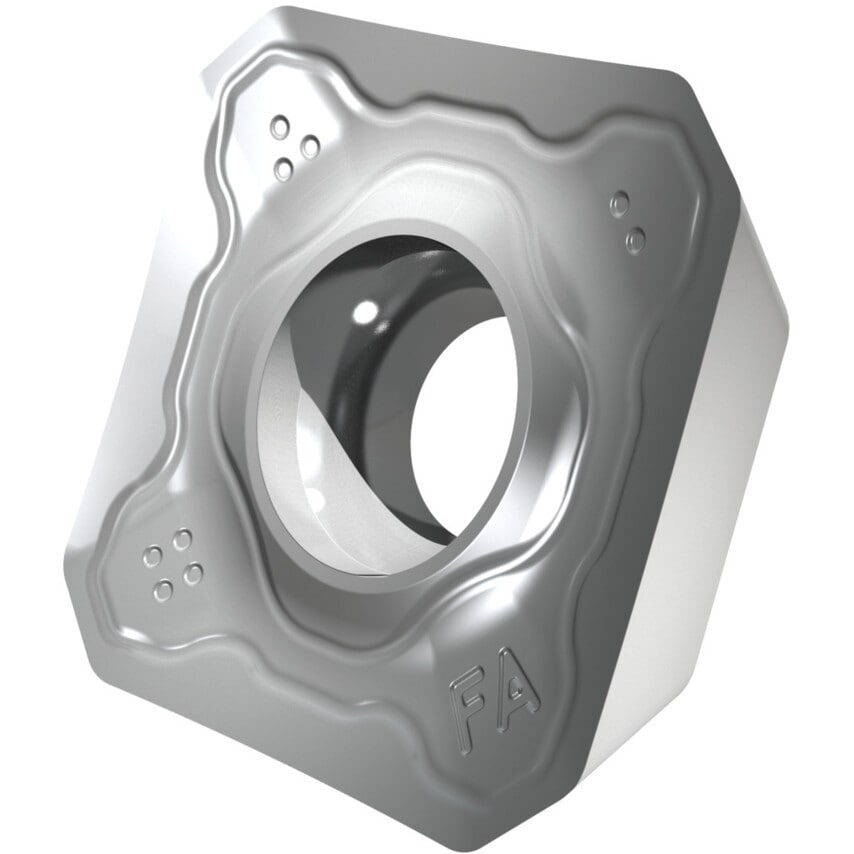

SDET is a square single-sided milling insert with a maximum depth of cut of 6.4mm. These milling inserts were designed for the machining of steel, cast steel, non-ferrous metals, and high-temperature alloys with face mills SSD13F, and feature PVD-coated, functionally graded WC-Co carbide.
Features and Benefits
PVD coating provides improved heat and wear resistance
Insert is economical and precise...
Designed for face milling for general engineering and maintenance
Typical Applications
Stainless Steel
Steel
Cast Steel
Non-ferrous metals
High-temperature alloys

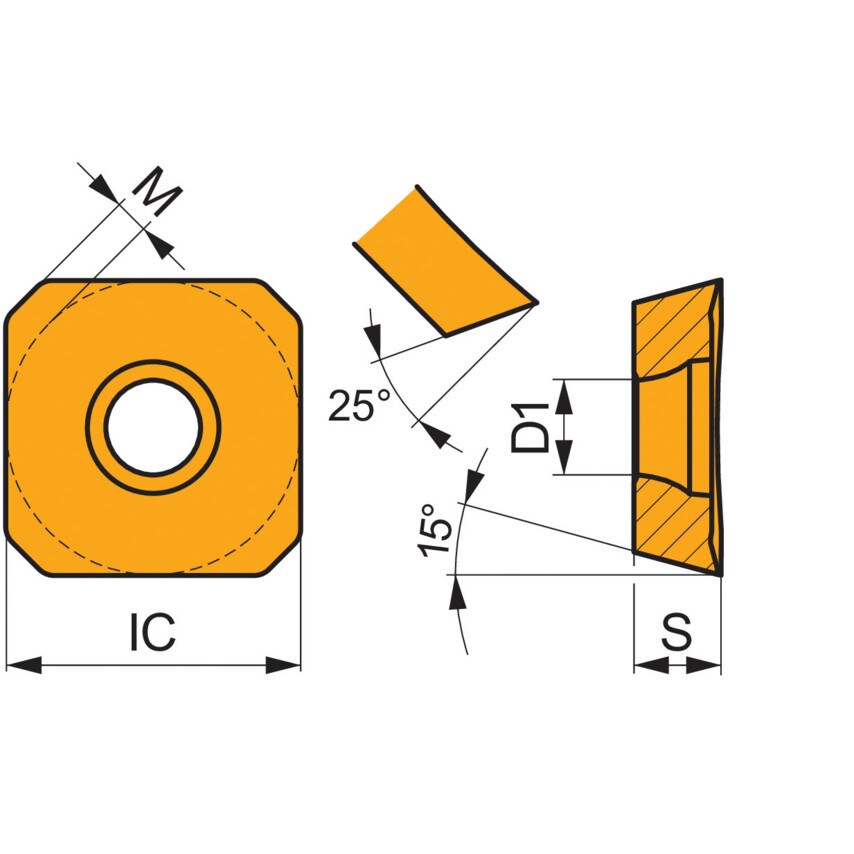

| Shape | Square |
| Clearance Angle | 15\u00b0 |
| Inscribed Circle | 13.38mm |
| Chipbreaker | FA |
| ISO Cut | N10 to N25 |
| MFR Part No. | 8202686 |
| Material Application | Nonferrous Metals |
| ISO Designation | SDET13T3AFFN-FA |
