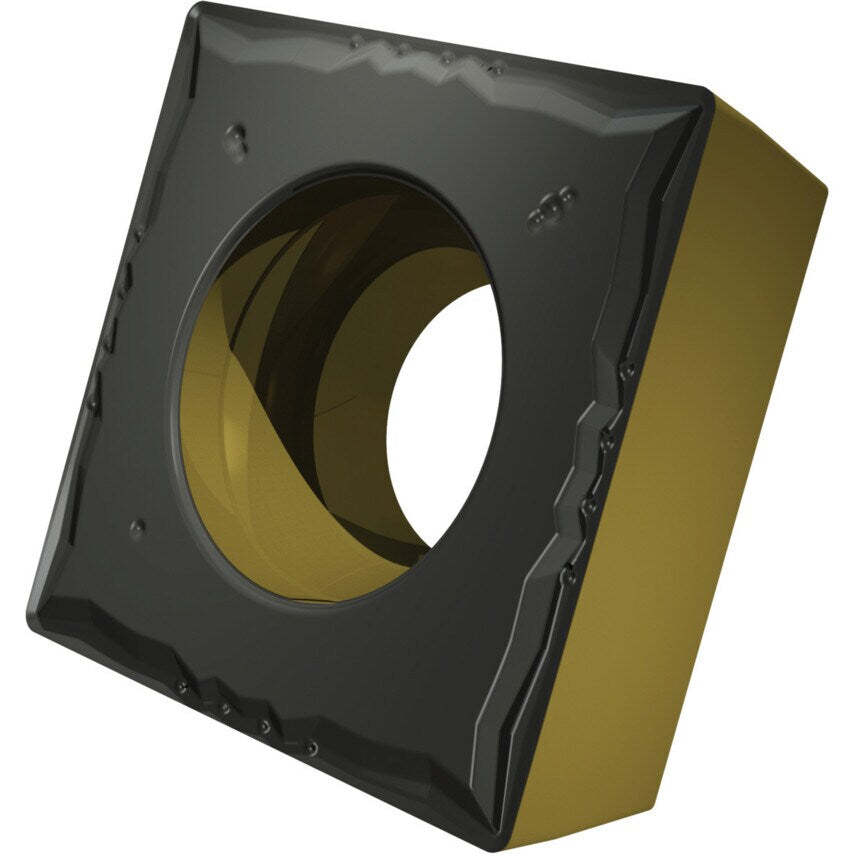

This single-sided square SCMT turning insert has a positive insert geometry and was designed for the fine to medium machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 0.4mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Steel
Cast Steel
| Insert Style | SCMT |
| Chipbreaker | FM |
| ISO Category | P |
| Finish/Coating | MT-CVD |
| Thickness | 4.76mm |
| Material Application | Cast Steel |
| Material | Carbide |
| Corner Radius | 0.4 |
| Inscribed Circle | 12.7mm |
| Clearance Angle | 7\u00b0 |
| Shape | Square |
| ISO Designation | SCMT 120404E-FM |
| ISO Cut | P05 -P30 |
| Cutting Edge Length | 12.7mm |
| MFR Part No. | 8345961 |
| ISO Category Grade | P |
