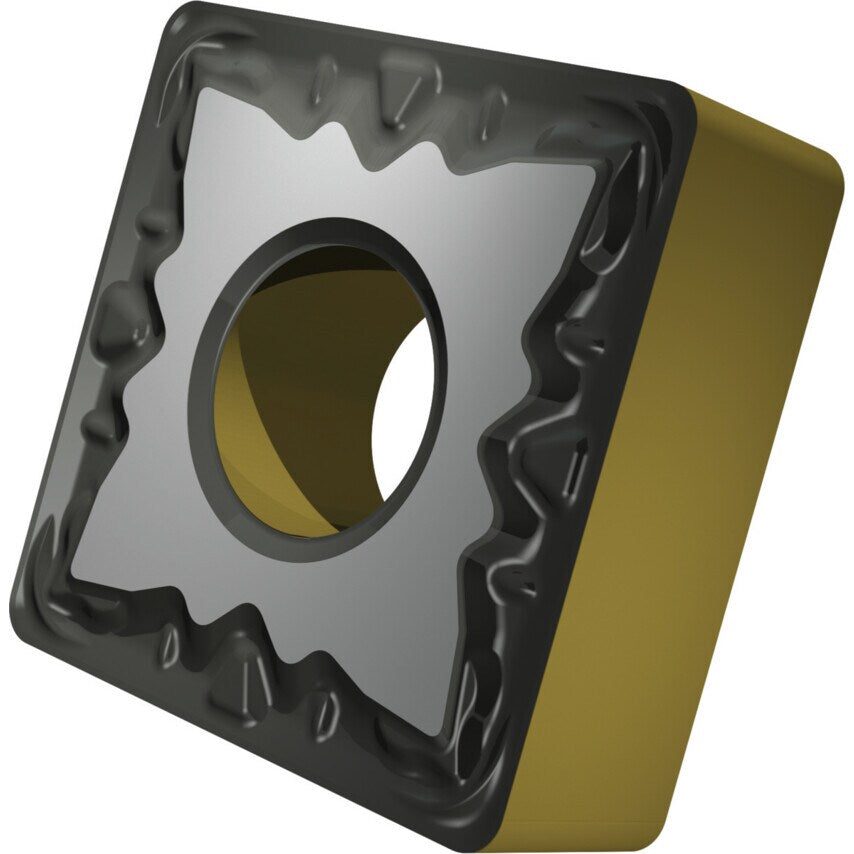

SNMG 120408E-FM T9415 Turning Insert - Negative

These double-sided square SNMG turning inserts have a negative insert geometry and were designed for the fine to medium machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and a 0.8mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting edge Typical Applications Steel Cast Steel

Inscribed Circle	12.7mm
Corner Radius	0.8
Material Application	Cast Iron | Cast Steel | Steels
Shape	Square
ISO Cut	P05 - P30
Thickness	4.76mm
ISO Designation	SNMG 120408E-FM
MFR Part No.	8244283
ISO Category	P
Chipbreaker	FM
Finish/Coating	MT-CVD
Material	Carbide
Cutting Edge Length	12.7mm
Insert Style	SNMG
ISO Category Grade	P
