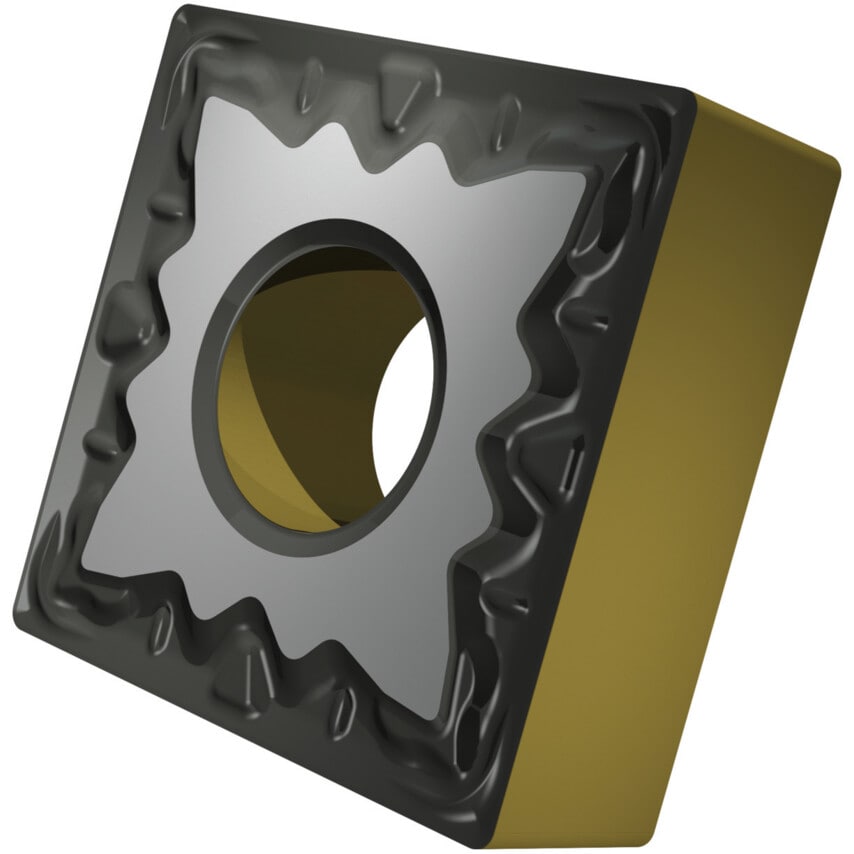

This double-sided square SNMG turning insert has a negative insert geometry and was designed for the fine to medium machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 0.4mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Steel
Cast Steel
| ISO Cut | P05 - P30 |
| Corner Radius | 0.4 |
| Cutting Edge Length | 12.7mm |
| Material Application | Cast Iron | Cast Steel | Steels |
| Thickness | 4.76mm |
| Manufacturer Grade | T9415 |
| Shape | Square |
| Insert Style | SNMG |
| Material | Carbide |
| Finish/Coating | MT-CVD |
| ISO Category | P |
| ISO Designation | SNMG 120404E-FM |
| MFR Part No. | 8244282 |
| Inscribed Circle | 12.7mm |
| Chipbreaker | FM |
| ISO Category Grade | P |
