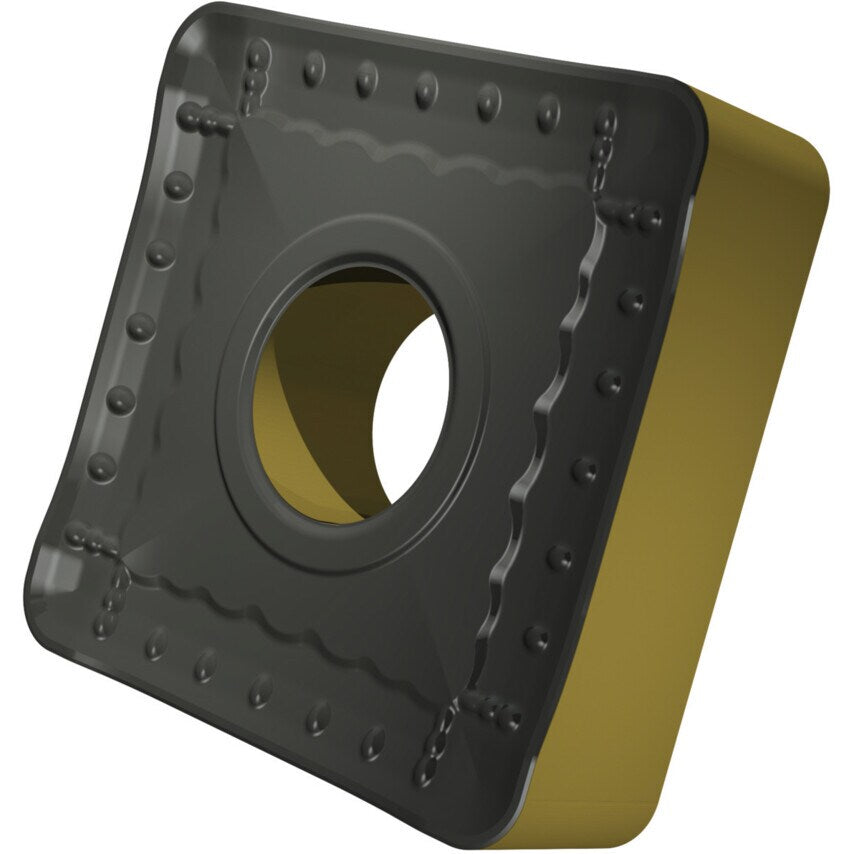

SNMM 250724E-OR T9415 Turning Insert - Negative

These double-sided square SNMM turning inserts have a negative insert geometry and were designed for the medium to extra heavy machining of steel and cast steel. The inscribed circle has a diameter of 25.4mm, 7.94mm thickness, and a 2.4mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel

Finish/Coating	MT-CVD
Inscribed Circle	25.4mm
Material Application	Cast Iron | Cast Steel | Steels
Cutting Edge Length	25.4mm
Insert Style	SNMM
MFR Part No.	8345588
ISO Designation	SNMM 250724E-OR
Corner Radius	2.4
Shape	Square
Thickness	7.94mm
Chipbreaker	OR
ISO Category	P
ISO Cut	P05 - P30
ISO Category Grade	P
Material	Carbide
