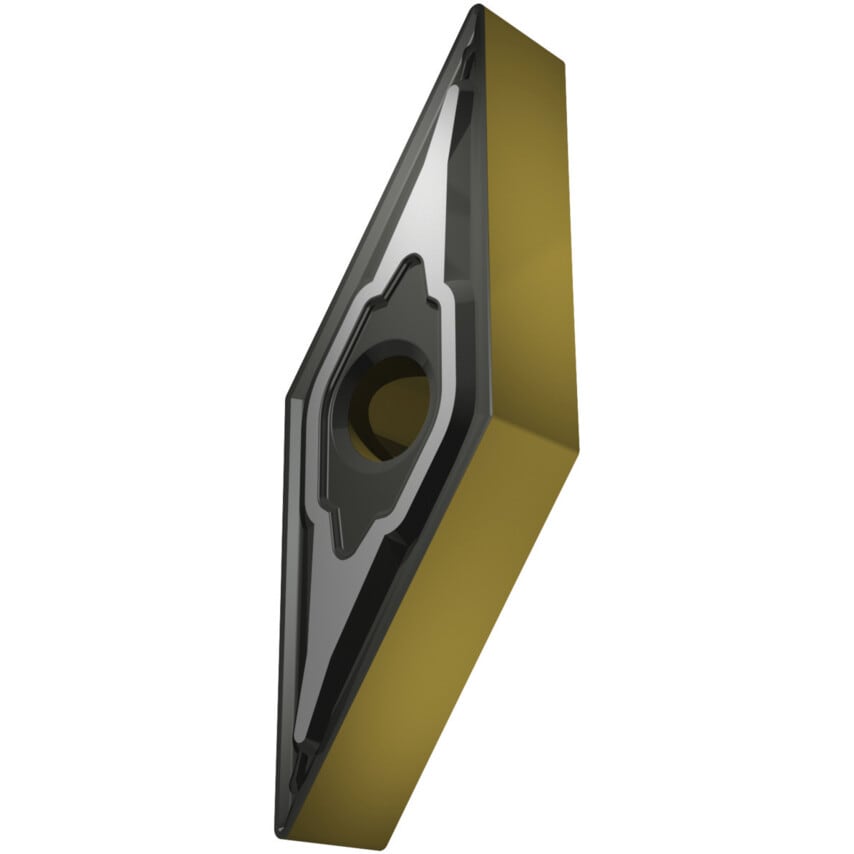

VNMG 160404E-M T9415 Turning Insert - Negative

These double-sided rhombic VNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of cast steels and steel. The inscribed circle has a diameter of 9.525mm, 4.76mm thickness, and 0.4mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Cast steel Steel

MFR Part No.	8345601
Chipbreaker	M
Insert Style	VNMG
Shape	35\u00b0 Rhombic
Corner Radius	0.4
ISO Category Grade	P
ISO Designation	VNMG 160404E-M
Material Application	Cast Iron | Cast Steel | Hardened Materials | Steels
Thickness	4.76mm
ISO Cut	P05 - P30
ISO Category	P
Finish/Coating	MT-CVD
Material	Carbide
Cutting Edge Length	16.6mm
Inscribed Circle	9.53mm
