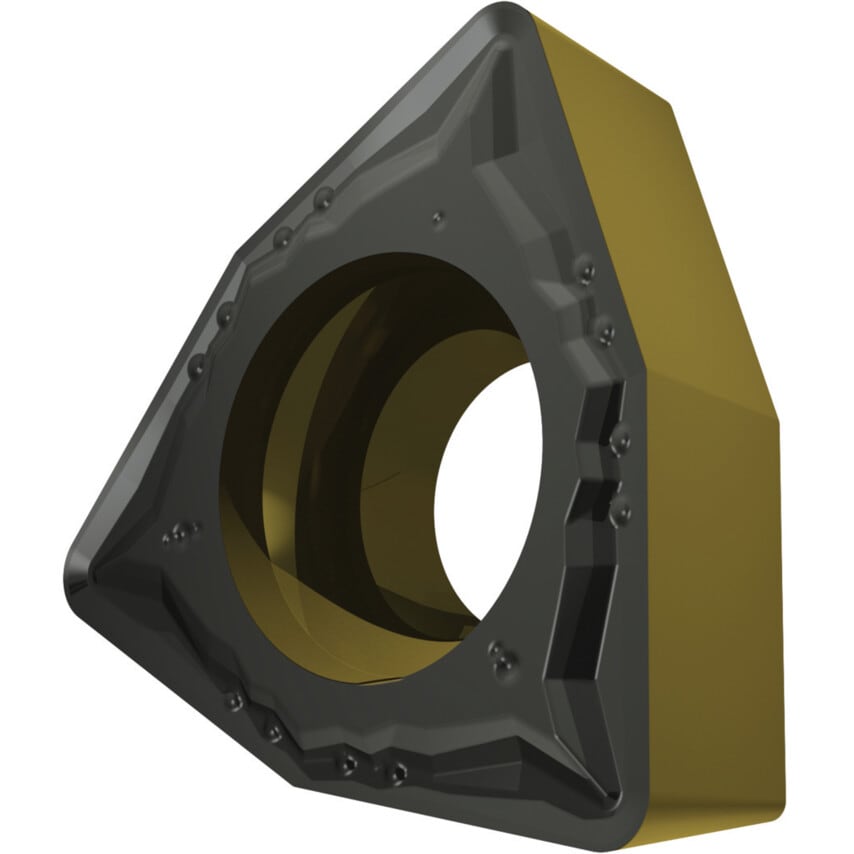

This single-sided rhombic WCMT turning insert has a positive insert geometry and was designed for the fine to medium machining of cast steels and steel. The inscribed circle has a diameter of 9.525mm, 4.76mm thickness, and 1.2mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Cast steel
Steel

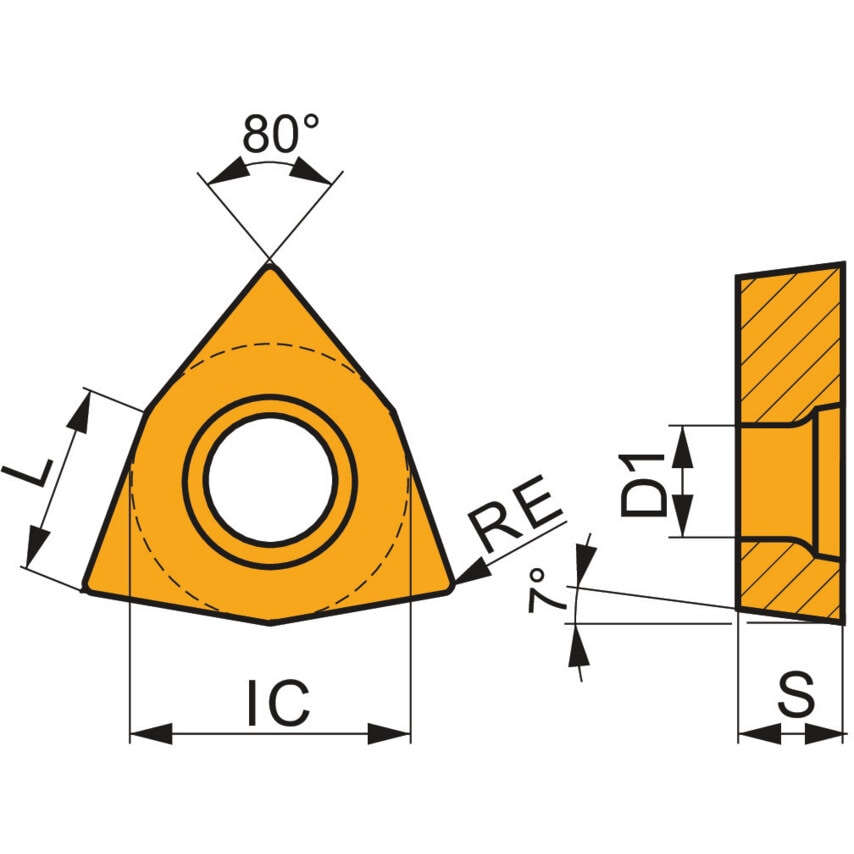

| ISO Cut | P05 - P30 |
| ISO Designation | WCMT 06T308E-FM |
| ISO Category Grade | P |
| Cutting Edge Length | 6.5mm |
| Finish/Coating | MT-CVD |
| Clearance Angle | 7\u00b0 |
| Shape | Trigon |
| Insert Style | WCMT |
| Manufacturer Grade | T9415 |
| Chipbreaker | FM |
| Thickness | 3.97mm |
| Inscribed Circle | 9.53mm |
| Corner Radius | 0.8 |
| Material | Carbide |
| ISO Category | P |
| Material Application | Cast Iron | Cast Steel | Steels |
| MFR Part No. | 8345993 |
