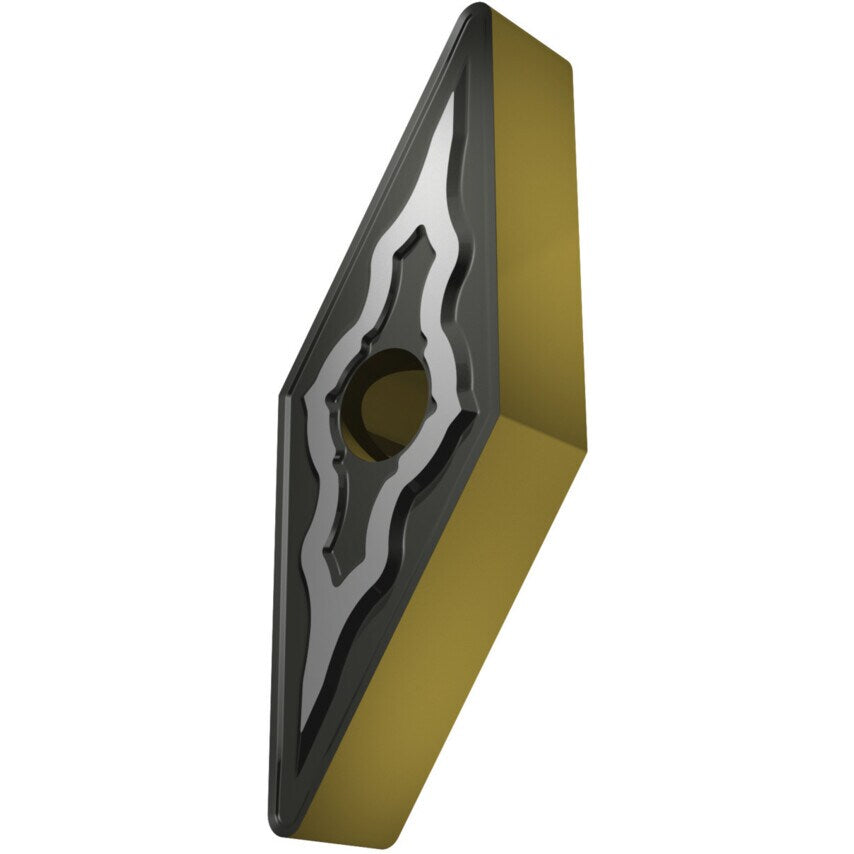

VNMG 160408E-NMR T9415 Turning Insert - Negative

These double-sided rhombic VNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of cast steels and steel. The inscribed circle has a diameter of 9.525mm, 4.76mm thickness, and 0.8mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Cast steel Steel

Thickness	4.76mm
ISO Designation	VNMG 160408E-NMR
Shape	35\u00b0 Rhombic
Material	Carbide
Chipbreaker	NMR
Inscribed Circle	9.53mm
Insert Style	VNMG
Material Application	Cast Steel | Steels
ISO Cut	P05 - P30
Corner Radius	0.8
MFR Part No.	8345604
Finish/Coating	MT-CVD
ISO Category	P
ISO Category Grade	P
Cutting Edge Length	16.6mm
