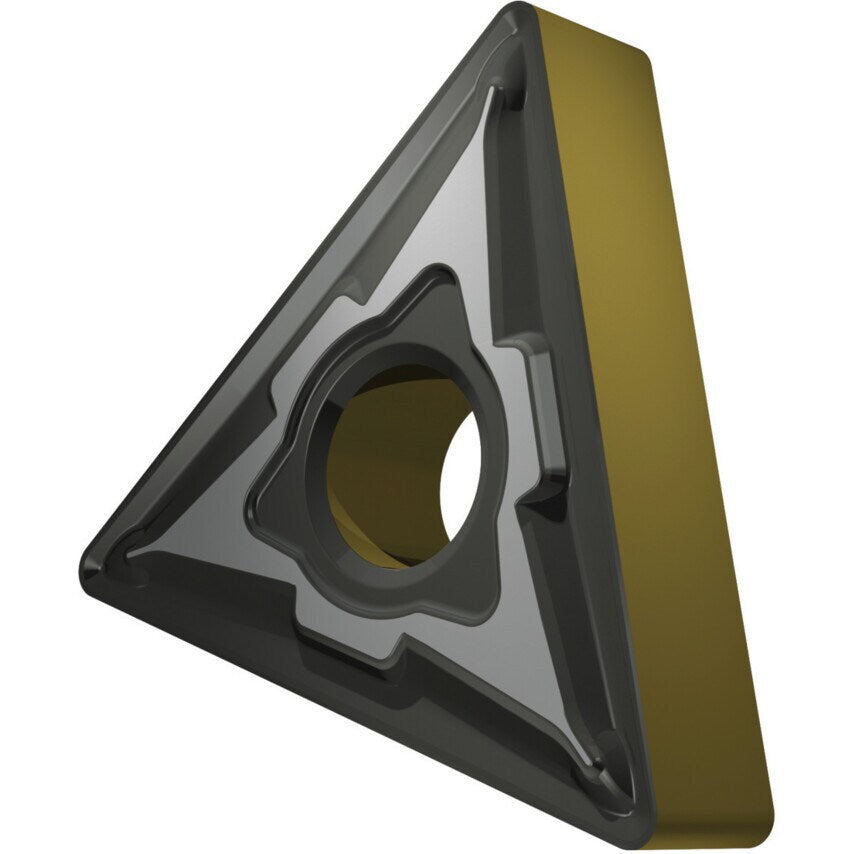

TNMG 220408E-M T9415 Turning Insert - Negative

These double-sided triangular TNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steel and cast steel. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and a 0.8mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel

ISO Designation	TNMG 220408E-M
Insert Style	TNMG
Material Application	Cast Iron | Cast Steel | Hardened Materials | Steels
Chipbreaker	M
Inscribed Circle	12.7mm
Finish/Coating	MT-CVD
ISO Category	P
Shape	60\u00b0 Triangle
Cutting Edge Length	22mm
Corner Radius	0.8
Material	Carbide
Thickness	4.76mm
ISO Category Grade	P
ISO Cut	P05 - P30
MFR Part No.	8244307
