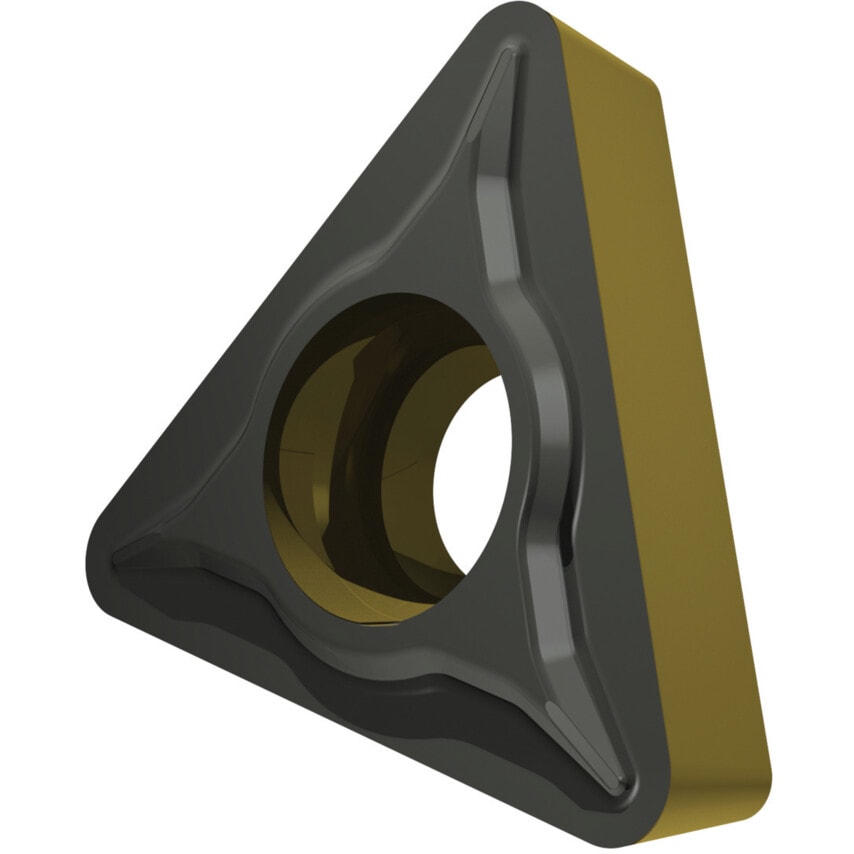

TCMT 110208E-FF2 T9415 Turning Insert - Positive

These single-sided triangular TCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steel and cast steel. The inscribed circle has a diameter of 6.35mm, 2.38mm thickness, and 0.8mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel

Finish/Coating	MT-CVD
Corner Radius	0.8
Chipbreaker	FF2
Thickness	2.38mm
ISO Category	P
Material Application	Cast Steel
Shape	60\u00b0 Triangle
Inscribed Circle	6.35mm
Material	Carbide
Insert Style	TCMT
Clearance Angle	7\u00b0
Cutting Edge Length	11mm
ISO Cut	P05 -P30
ISO Designation	TCMT 110208E-FF2
ISO Category Grade	P
MFR Part No.	8244381
