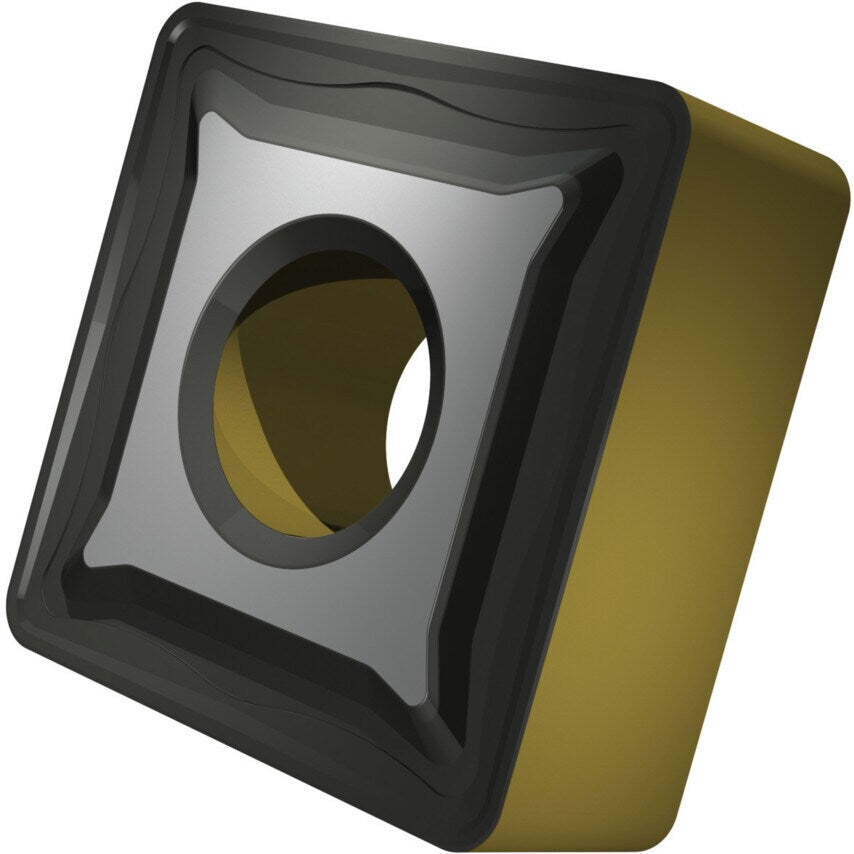

SNMG 150612E-R T9415 Turning Insert - Negative

These double-sided square SNMG turning inserts have a negative insert geometry and were designed for the fine to medium machining of steels and cast iron. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 1.6mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel Cast iron

ISO Category	P
ISO Designation	SNMG 150612E-R
MFR Part No.	8345573
Thickness	6.35mm
Insert Style	SNMG
ISO Category Grade	P
Finish/Coating	MT-CVD
Shape	Square
Inscribed Circle	15.88mm
Material Application	Cast Iron | Cast Steel | Hardened Materials | Steels
Material	Carbide
ISO Cut	P05 - P30
Corner Radius	1.2
Chipbreaker	R
Cutting Edge Length	15.88mm
