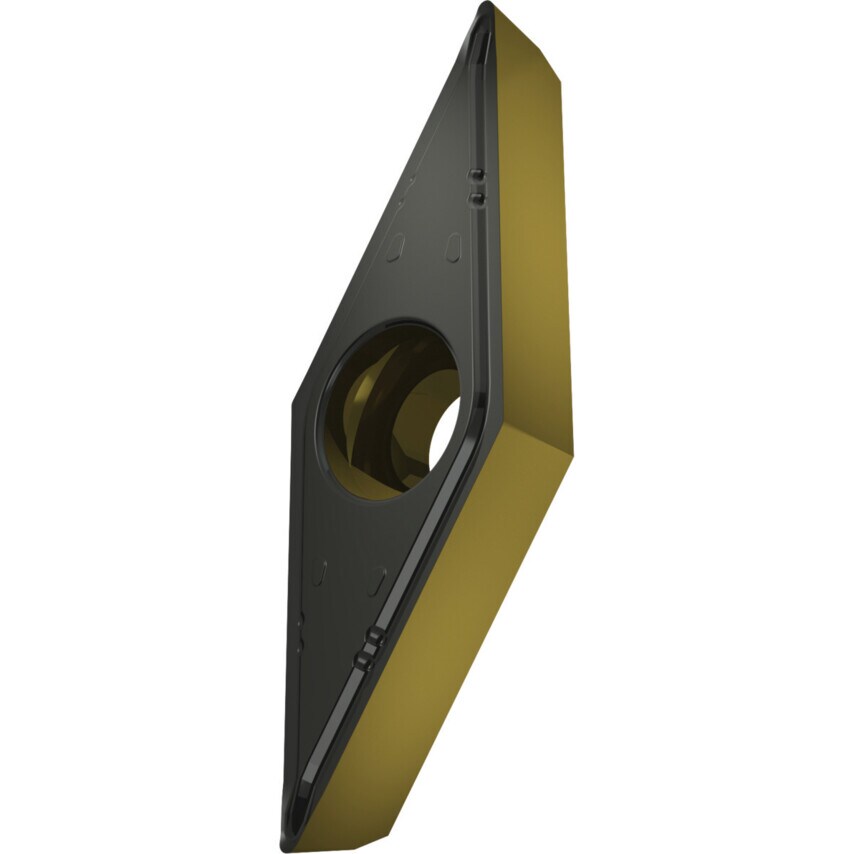

These single-sided rhombic VCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of cast steels and steel. The inscribed circle has a diameter of 9.525mm, 4.76mm thickness, and 0.4mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Cast steel
Steel
| Cutting Edge Length | 16.6mm |
| ISO Designation | VCMT 160404E-UR |
| Material Application | Cast Steel |
| Material | Carbide |
| Finish/Coating | MT-CVD |
| Shape | 35\u00b0 Rhombic |
| Corner Radius | 0.4 |
| ISO Category Grade | P |
| MFR Part No. | 8345990 |
| ISO Cut | P05 -P30 |
| Chipbreaker | UR |
| ISO Category | P |
| Inscribed Circle | 9.53mm |
| Thickness | 4.76mm |
| Insert Style | VCMT |
| Clearance Angle | 7\u00b0 |
