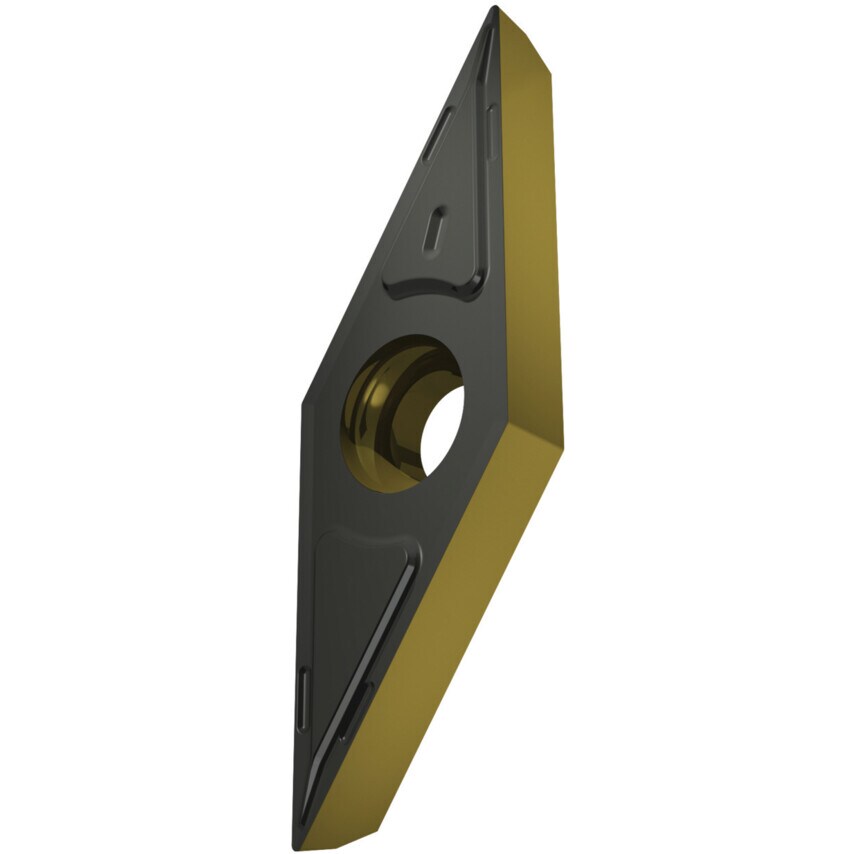

This single-sided rhombic VCGT turning insert has a positive insert geometry and was designed for the fine to medium machining of cast steels and steel. The inscribed circle has a diameter of 7.94mm, 3.18mm thickness, and 0.2mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Cast steel
Steel
| Insert Size | 7.94mm |
| ISO Designation | VCGT 130302E-FF2 |
| Finish/Coating | MT-CVD |
| ISO Cut | P05 - P30 |
| Cutting Edge Length | 13.8mm |
| Product Type | Turning Inserts |
| Corner Radius | 0.2 |
| Insert Style | VCGT |
| Material | Carbide |
| Clearance Angle | 7\u00b0 |
| MFR Part No. | 8345983 |
| Chipbreaker | FF2 |
| Thickness | 3.18mm |
| Shape | 35\u00b0 Rhombic |
| ISO Category | P |
| Material Application | Cast Iron | Cast Steel | Steels |
| Manufacturer Grade | T9415 |
| Inscribed Circle | 7.94mm |
| ISO Category Grade | P |
