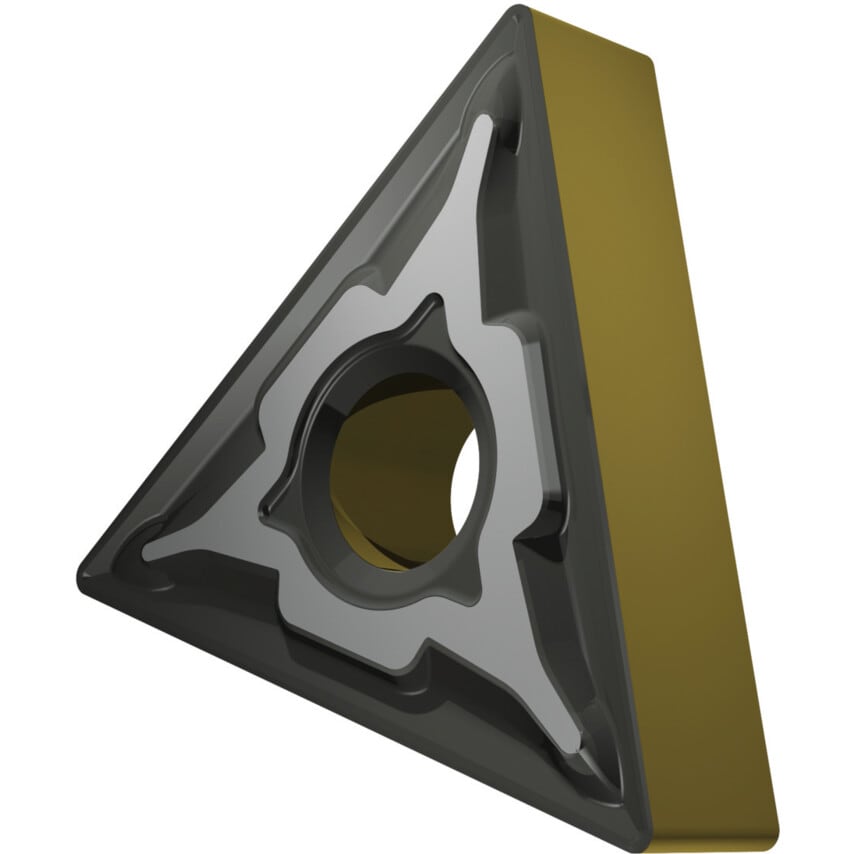

TNMG 160408E-M T9415 Turning Insert - Negative

These double-sided triangular TNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steel and cast steel. The inscribed circle has a diameter of 9.525mm, 4.76mm thickness, and 0.8mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel

Cutting Edge Length	16.5mm
Chipbreaker	M
ISO Cut	P05 - P30
ISO Category	P
ISO Category Grade	P
Insert Style	TNMG
Inscribed Circle	9.53mm
ISO Designation	TNMG 160408E-M
Thickness	4.76mm
MFR Part No.	8244299
Material Application	Cast Iron | Cast Steel | Hardened Materials | Steels
Finish/Coating	MT-CVD
Corner Radius	0.8
Shape	60\u00b0 Triangle
Material	Carbide
