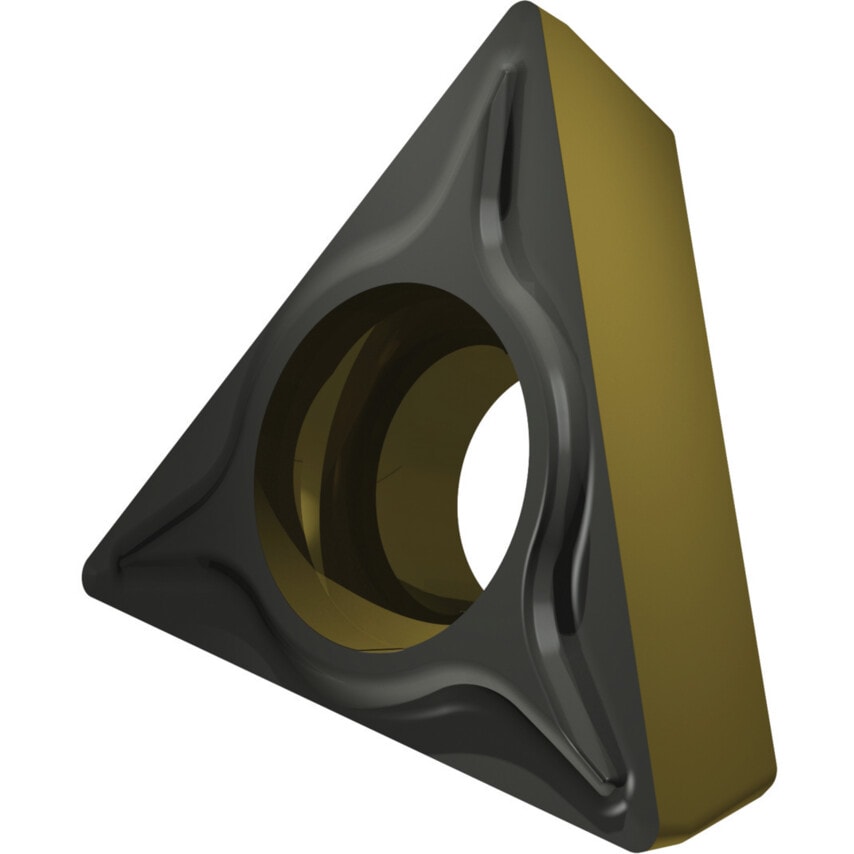

This double-sided triangular TCMT turning insert has a positive insert geometry and was designed for the fine to medium machining of steels. The inscribed circle has a diameter of 3.97mm, 1.98mm thickness, and a 0.2mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Cast steel
Steel
| ISO Designation | TCMT 06T102E-FF2 |
| Material Application | Cast Steel |
| Finish/Coating | MT-CVD |
| Material | Carbide |
| Corner Radius | 0.2 |
| ISO Category Grade | P |
| Chipbreaker | FF2 |
| Clearance Angle | 7\u00b0 |
| Insert Style | TCMT |
| Shape | 60\u00b0 Triangle |
| Cutting Edge Length | 6.9mm |
| ISO Category | P |
| Inscribed Circle | 3.97mm |
| ISO Cut | P05 -P30 |
| Thickness | 1.98mm |
| MFR Part No. | 8345966 |
