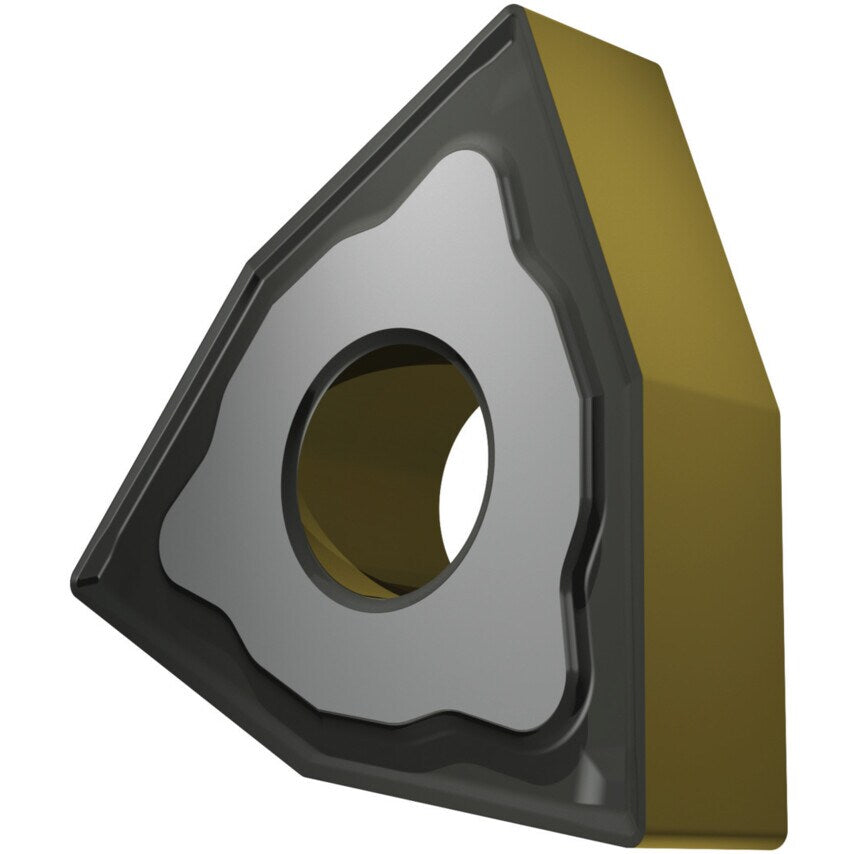

WNMG 080404E-NM T9415 Turning Insert - Negative

These double-sided trigon WNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of cast steels and steel. The inscribed circle has a diameter of 9.525mm, 4.76mm thickness, and 1.2mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Cast steel Steel

Corner Radius	0.4
Finish/Coating	MT-CVD
Material	Carbide
ISO Cut	P05 - P30
Cutting Edge Length	8.7mm
ISO Designation	WNMG 080404E-NM
Insert Size	9.53mm
Chipbreaker	NM
Material Application	Cast Steel | Steels
MFR Part No.	8345613
Thickness	4.76mm
ISO Category	P
Insert Style	WNMG
Product Type	Turning Inserts
Shape	Trigon
ISO Category Grade	P
Inscribed Circle	12.7mm
