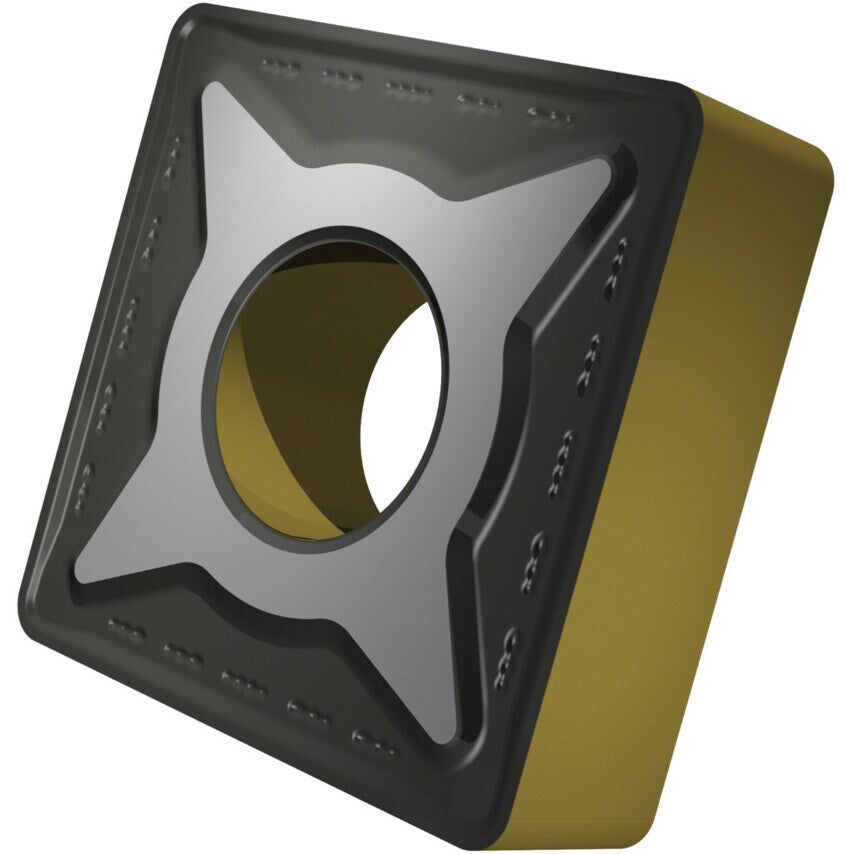

SNMG 190612E-RM T9415 Turning Insert - Negative

These double-sided square SNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 19.05mm, 6.35mm thickness, and 1.2mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel

Corner Radius	1.2
ISO Cut	P05 - P30
MFR Part No.	8244292
Inscribed Circle	19.05mm
ISO Designation	SNMG 190612E-RM
Material	Carbide
ISO Category Grade	P
Insert Style	SNMG
ISO Category	P
Material Application	Cast Iron | Cast Steel | Steels
Chipbreaker	RM
Shape	Square
Thickness	6.35mm
Cutting Edge Length	19.05mm
Finish/Coating	MT-CVD
