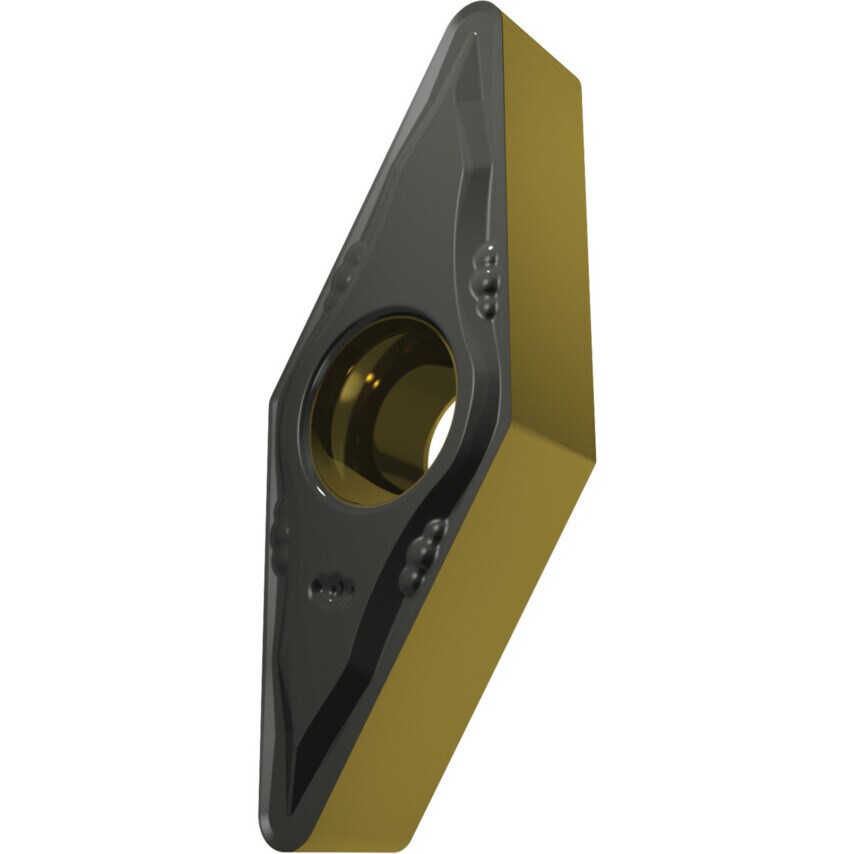

This single-sided rhombic VBMT turning insert has a positive insert geometry and was designed for the fine to medium machining of cast steels and steel. The inscribed circle has a diameter of 6.35mm, 3.18mm thickness, and a 0.8mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Cast steel
Steel
| Material | Carbide |
| MFR Part No. | 8183842 |
| Thickness | 3.18mm |
| ISO Cut | P05 - P30 |
| ISO Designation | VBMT 110308E-FM |
| Cutting Edge Length | 11.1mm |
| Inscribed Circle | 6.35mm |
| Manufacturer Grade | T9415 |
| Clearance Angle | 5\u00b0 |
| Corner Radius | 0.8 |
| Insert Style | VBMT |
| Material Application | Cast Iron | Cast Steel | Steels |
| ISO Category Grade | P |
| Chipbreaker | FM |
| ISO Category | P |
| Finish/Coating | MT-CVD |
| Shape | 35\u00b0 Rhombic |
