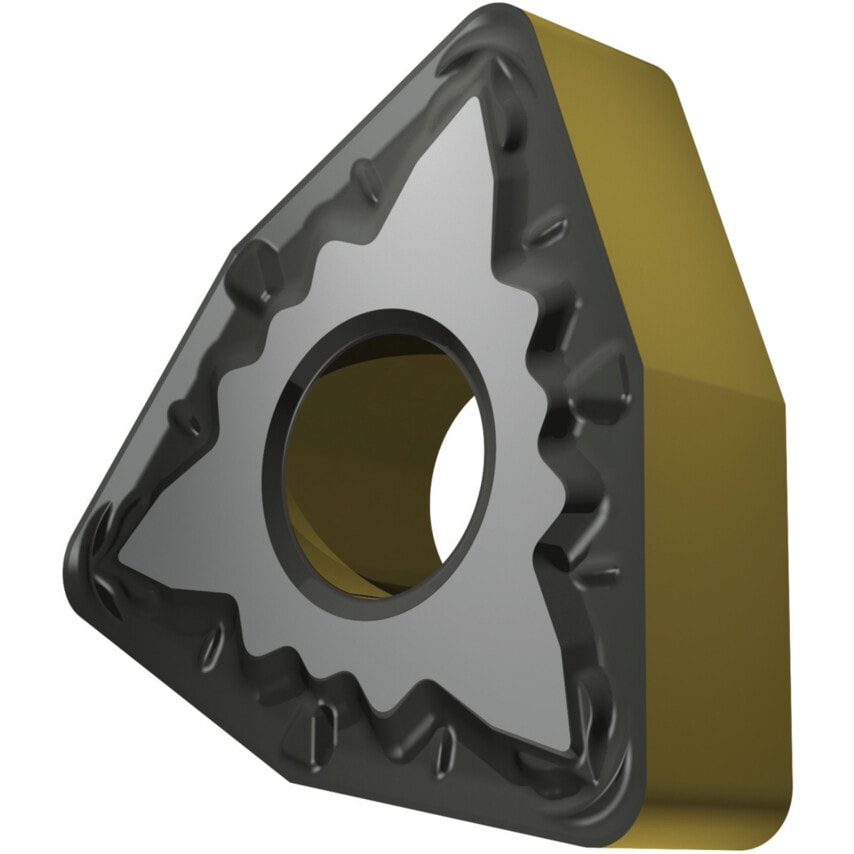

These double-sided trigon WNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of cast steels and steel. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 1.2mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Cast steel
Steel
Stainless steel
| Cutting Edge Length | 8.7mm |
| Shape | Trigon |
| Insert Size | 12.7mm |
| Insert Style | WNMG |
| Corner Radius | 1.2mm |
| Material | Carbide |
| Product Type | Turning Inserts |
| Thickness | 4.76mm |
| Chipbreaker | FM |
| ISO Designation | WNMG 080412E-FM |
| MFR Part No. | 8244330 |
| Finish/Coating | Coated |
| Material Application | Stainless Steels | Steels |
