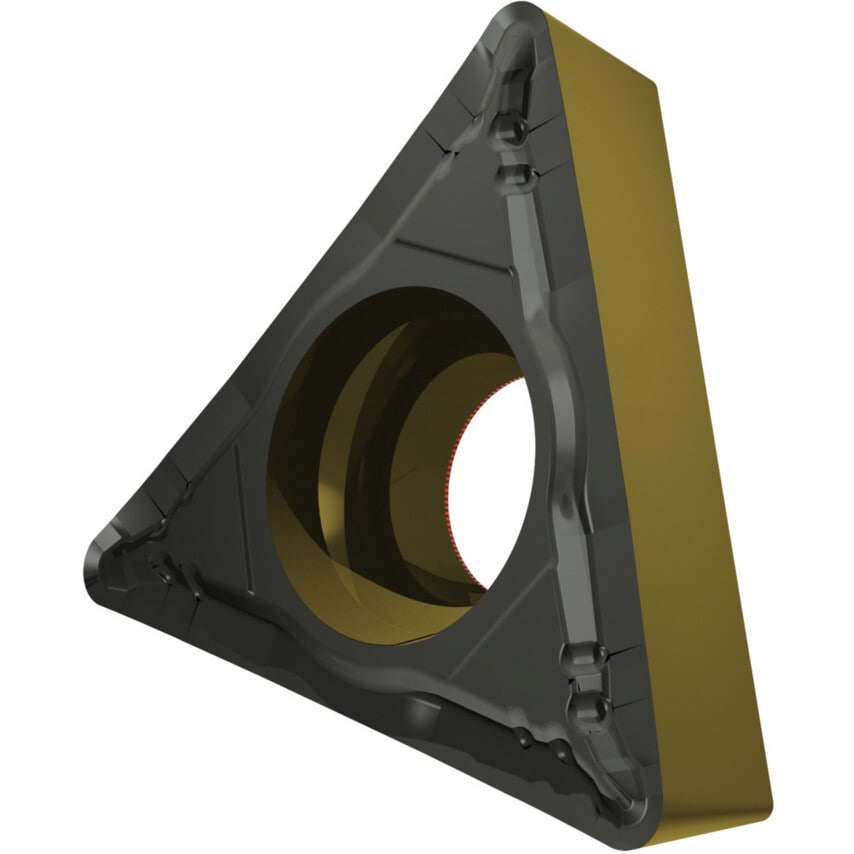

These single-sided triangular TCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steel and cast steel. The inscribed circle has a diameter of 6.35mm, 2.38mm thickness, and a 0.8mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Steel
Cast steel
| Material | Carbide |
| Corner Radius | 0.8 |
| ISO Category | P |
| Cutting Edge Length | 16.5mm |
| Inscribed Circle | 9.53mm |
| Insert Style | TCMT |
| Chipbreaker | UR |
| ISO Cut | P05 -P30 |
| Clearance Angle | 7\u00b0 |
| Material Application | Cast Steel |
| MFR Part No. | 8345975 |
| ISO Category Grade | P |
| Finish/Coating | MT-CVD |
| Thickness | 3.97mm |
| Shape | 60\u00b0 Triangle |
| ISO Designation | TCMT 16T308E-UR |
