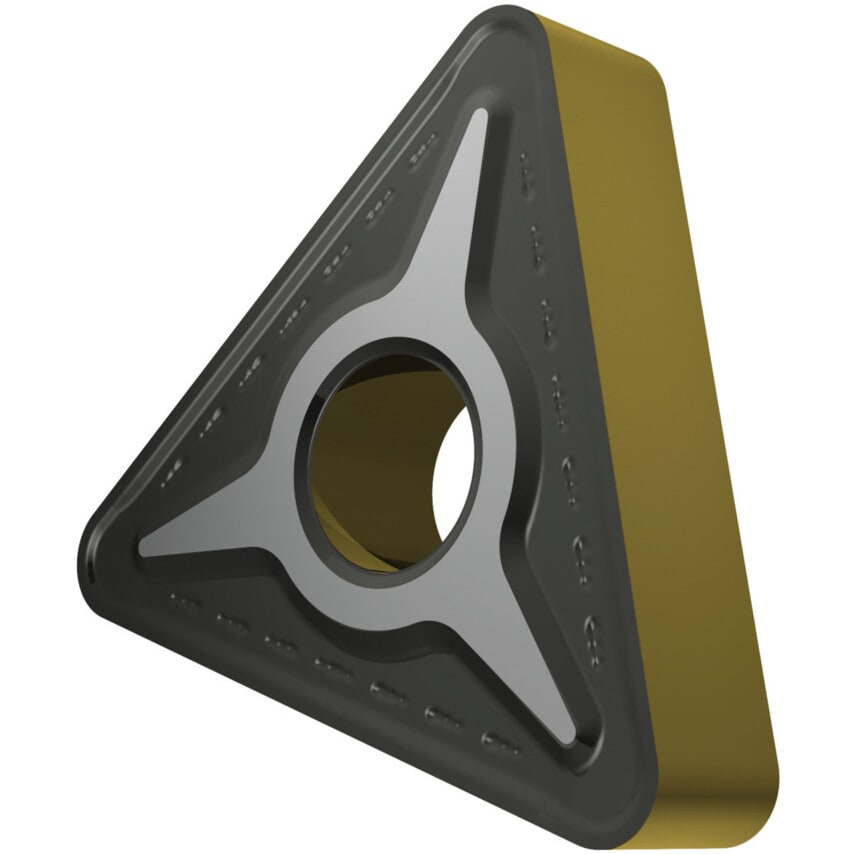

This double-sided triangular TNMG turning insert has a negative insert geometry and was designed for the fine to medium machining of cast steels and steel. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 1.6mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Cast steel
Steel
| ISO Category Grade | P |
| Insert Style | TNMG |
| Inscribed Circle | 12.7mm |
| Material Application | Cast Iron | Cast Steel | Steels |
| ISO Category | P |
| Finish/Coating | MT-CVD |
| Cutting Edge Length | 22mm |
| Manufacturer Grade | T9415 |
| ISO Cut | P05 - P30 |
| Shape | 60\u00b0 Triangle |
| Corner Radius | 1.6 |
| Material | Carbide |
| MFR Part No. | 8244314 |
| ISO Designation | TNMG 220416E-RM |
| Chipbreaker | RM |
| Thickness | 4.76mm |
