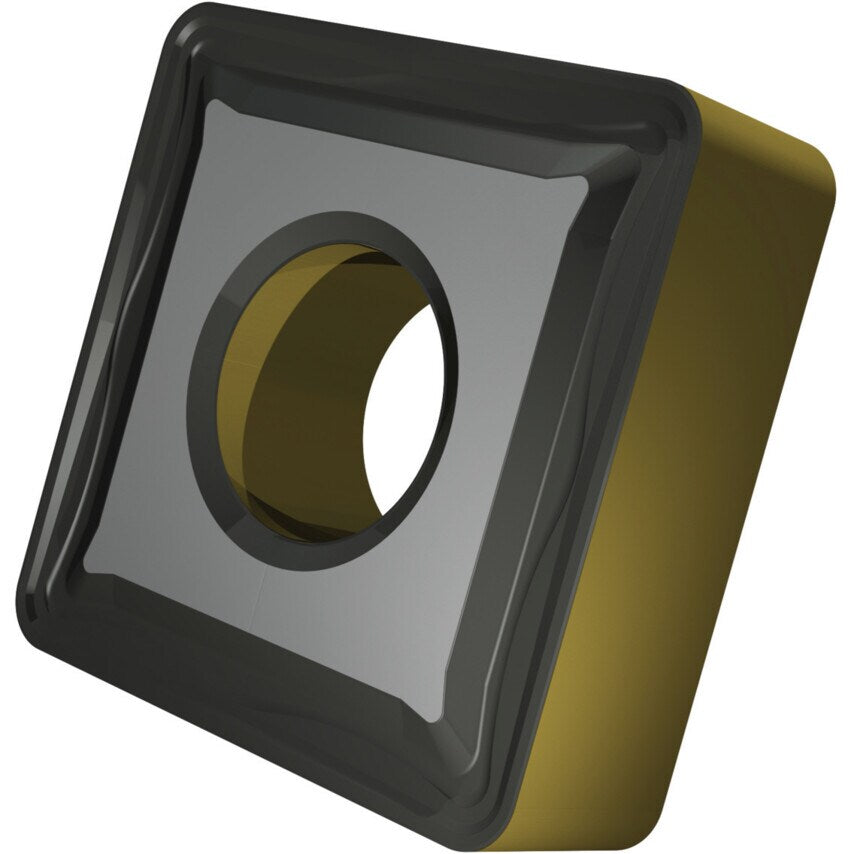

SNMG 190616E-R T9415 Turning Insert - Negative

These double-sided square SNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 19.05mm, 6.35mm thickness, and 1.2mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel

ISO Designation	SNMG 190616E-R
MFR Part No.	8345578
Finish/Coating	MT-CVD
Insert Style	SNMG
Material	Carbide
ISO Category Grade	P
Thickness	6.35mm
Shape	Square
Inscribed Circle	19.05mm
Material Application	Cast Iron | Cast Steel | Hardened Materials | Steels
Cutting Edge Length	19.05mm
ISO Category	P
Corner Radius	1.6
ISO Cut	P05 - P30
Chipbreaker	R
