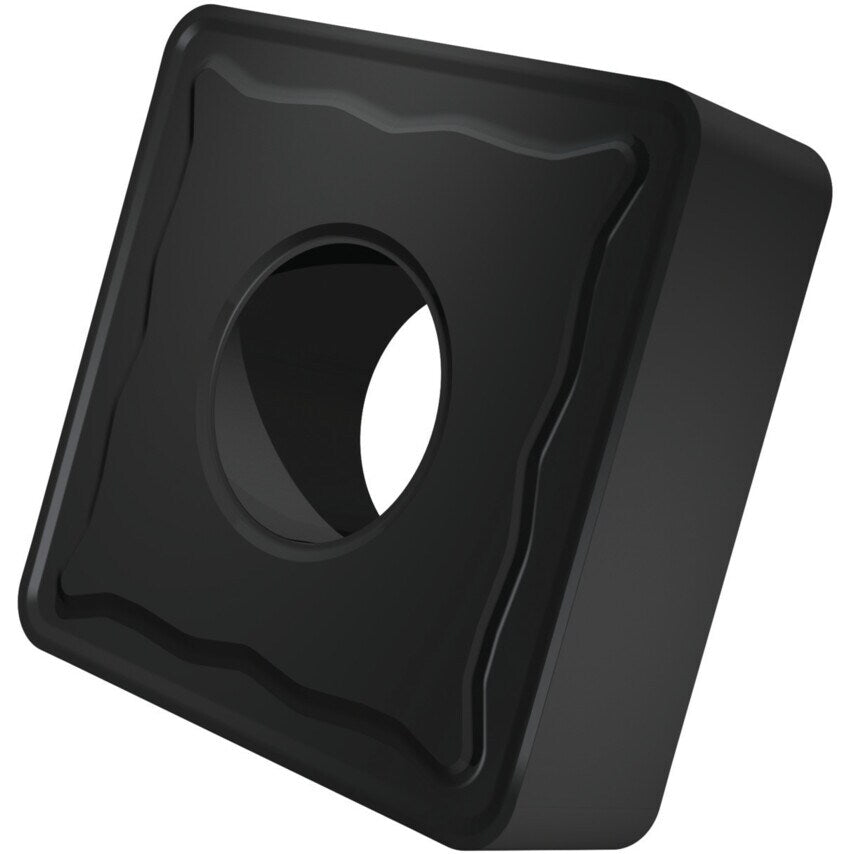

These double-sided square SNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 19.05mm, 6.35mm thickness, and 1.2mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Steel
Cast steel
| ISO Category | K |
| Thickness | 6.35mm |
| ISO Category Grade | K |
| Material | Carbide |
| ISO Cut | K10 - K25 |
| Corner Radius | 1.6 |
| Material Application | Cast Iron | Cast Steel | Hardened Materials | Steels |
| Cutting Edge Length | 19.05mm |
| Inscribed Circle | 19.05mm |
| ISO Designation | SNMG 190616E-KR |
| MFR Part No. | 8377247 |
| Chipbreaker | KR |
| Shape | Square |
| Finish/Coating | MT-CVD |
| Insert Style | SNMG |
