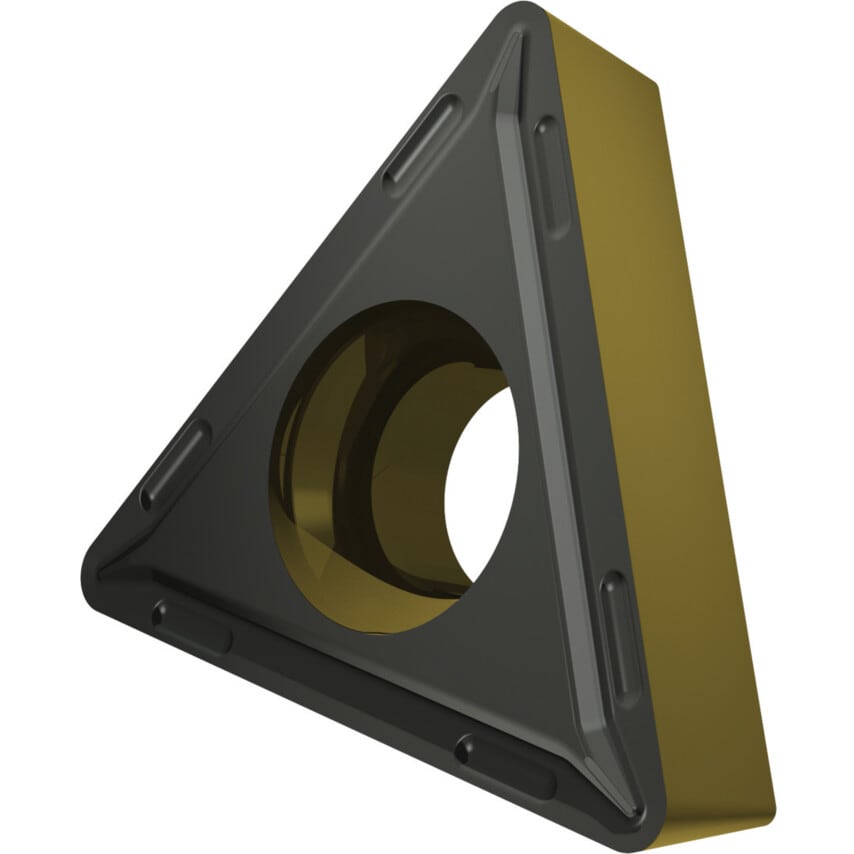

TCMT 16T308E-FF2 T9415 Turning Insert - Positive

These single-sided triangular TCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steel and cast steel. The inscribed circle has a diameter of 6.35mm, 2.38mm thickness, and a 0.8mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel

Insert Style	TCMT
ISO Category	P
Shape	60\u00b0 Triangle
Thickness	3.97mm
Corner Radius	0.8
ISO Category Grade	P
Cutting Edge Length	16.5mm
Inscribed Circle	9.53mm
MFR Part No.	8345972
ISO Cut	P05 -P30
Clearance Angle	7\u00b0
Material	Carbide
ISO Designation	TCMT 16T308E-FF2
Material Application	Cast Steel
Finish/Coating	MT-CVD
Chipbreaker	FF2
