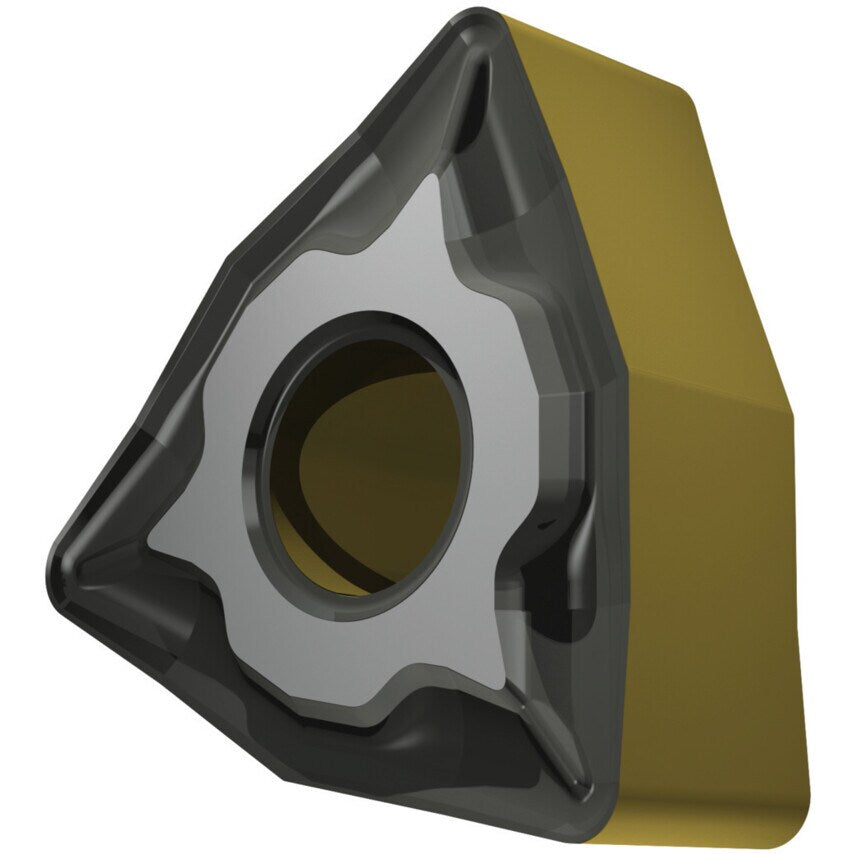

WNMG 060408E-NF T9415 Turning Insert - Negative

These double-sided trigon WNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of cast steels and steel. The inscribed circle has a diameter of 9.525mm, 4.76mm thickness, and 0.8mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Cast steel Steel

Inscribed Circle	9.53mm
Corner Radius	0.8
Finish/Coating	MT-CVD
Shape	Trigon
Chipbreaker	NF
ISO Category Grade	P
MFR Part No.	8345609
Material	Carbide
Insert Size	9.53mm
Insert Style	WNMG
ISO Cut	P05 - P30
Cutting Edge Length	6.5mm
Product Type	Turning Inserts
ISO Designation	WNMG 060408E-NF
Material Application	Cast Iron | Cast Steel | Steels
ISO Category	P
Thickness	4.76mm
