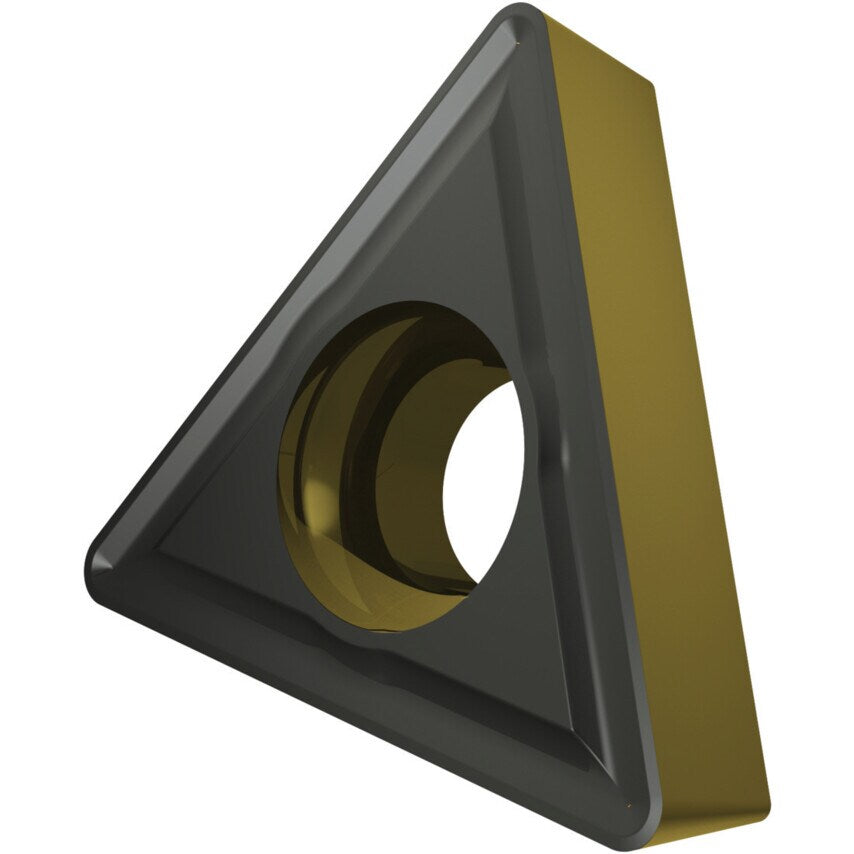

TCMT 16T308E-RM3 T9415 Turning Insert - Positive

These single-sided triangular TCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steel and cast steel. The inscribed circle has a diameter of 6.35mm, 2.38mm thickness, and a 0.8mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel

Inscribed Circle	9.53mm
ISO Cut	P05 -P30
ISO Designation	TCMT 16T308E-RM3
ISO Category Grade	P
Material Application	Cast Steel
Cutting Edge Length	16.5mm
Material	Carbide
Shape	60\u00b0 Triangle
Thickness	3.97mm
ISO Category	P
Insert Style	TCMT
Corner Radius	0.8
Chipbreaker	RM3
Clearance Angle	7\u00b0
MFR Part No.	8345974
Finish/Coating	MT-CVD
