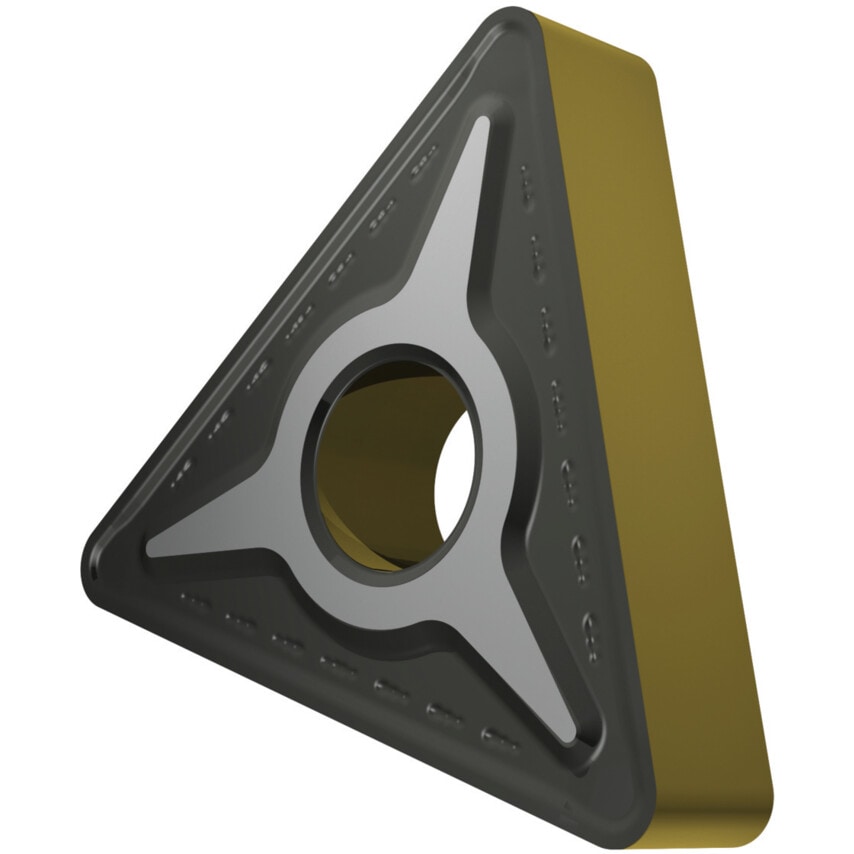

TNMG 220412E-RM T9415 Turning Insert - Negative

These double-sided triangular TNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steel and cast steel. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 1.2mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel

ISO Category Grade	P
Finish/Coating	MT-CVD
Material	Carbide
Material Application	Cast Iron | Cast Steel | Steels
ISO Cut	P05 - P30
Insert Style	TNMG
Chipbreaker	RM
Cutting Edge Length	22mm
Shape	60\u00b0 Triangle
Thickness	4.76mm
Corner Radius	1.2
ISO Category	P
Inscribed Circle	12.7mm
ISO Designation	TNMG 220412E-RM
MFR Part No.	8244312
