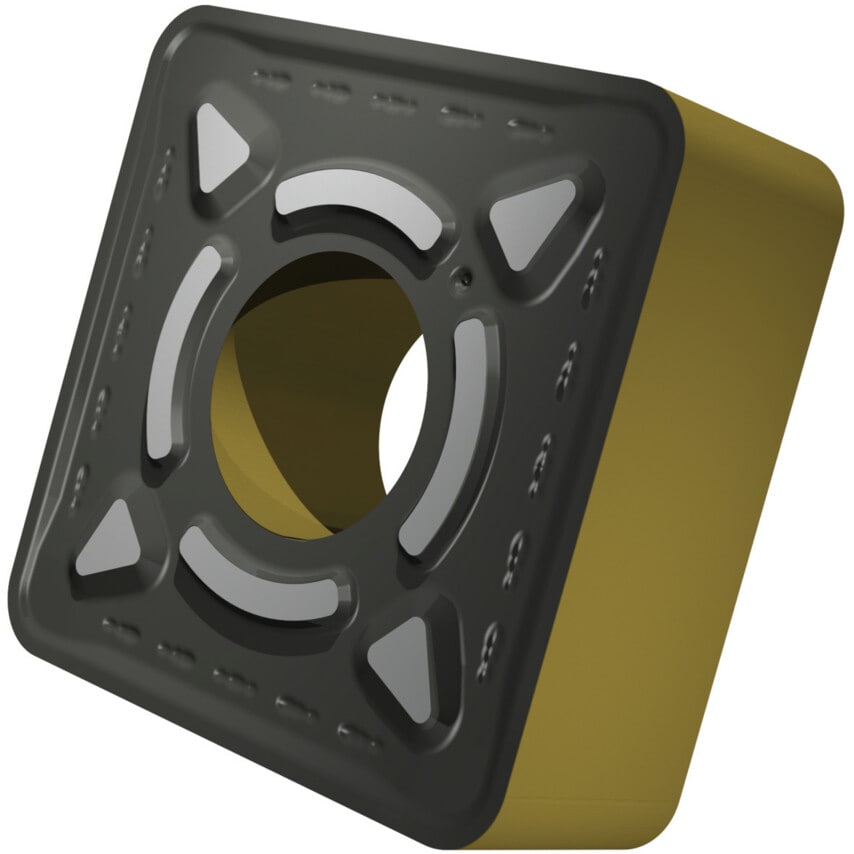

SNMG 150616E-RM T9415 Turning Insert - Negative

These double-sided square SNMM turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 15.875mm, 6.35mm thickness, and 1.6mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel

MFR Part No.	8244291
Thickness	6.35mm
ISO Category Grade	P
ISO Cut	P05 - P30
Cutting Edge Length	15.88mm
Material	Carbide
Material Application	Cast Iron | Cast Steel | Steels
ISO Designation	SNMG 150616E-RM
Inscribed Circle	15.88mm
Chipbreaker	RM
Finish/Coating	MT-CVD
Shape	Square
Corner Radius	1.6
ISO Category	P
Insert Style	SNMG
