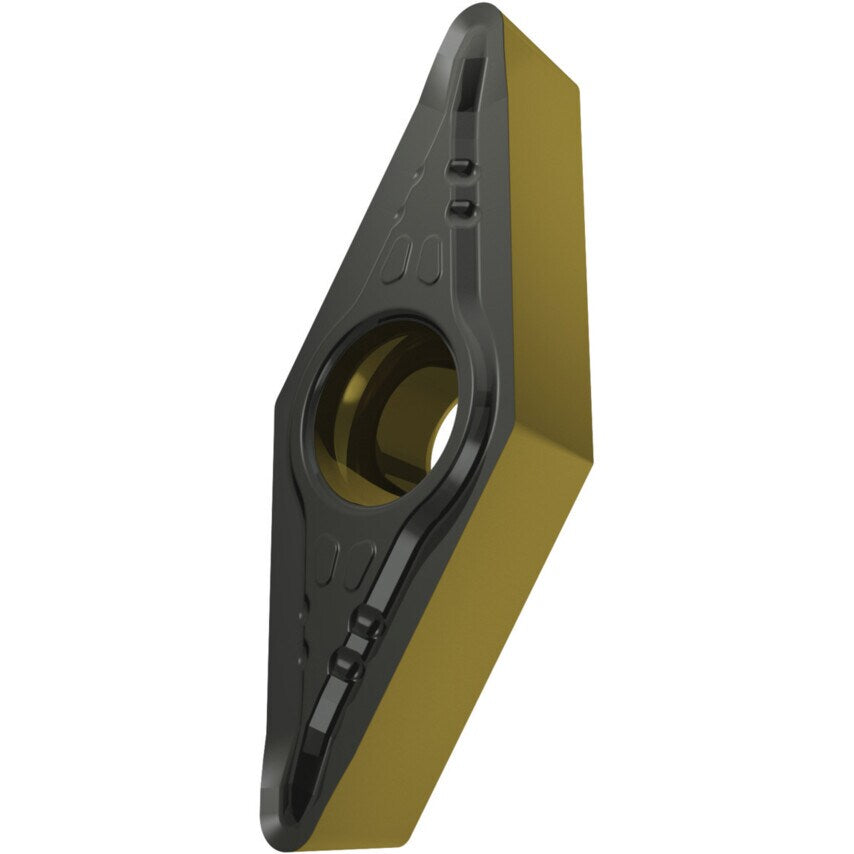

This single-sided rhombic VCGT turning insert has a positive insert geometry and was designed for the fine to heavy machining of cast steels and steel. The inscribed circle has a diameter of 6.35mm, 3.18mm thickness, and a 0.8mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Cast steel
Steel
| Clearance Angle | 7\u00b0 |
| Manufacturer Grade | T9415 |
| Inscribed Circle | 6.35mm |
| Material Application | Cast Iron | Cast Steel | Steels |
| ISO Cut | P05 - P30 |
| Shape | 35\u00b0 Rhombic |
| MFR Part No. | 8345989 |
| Chipbreaker | UR |
| Thickness | 3.18mm |
| Corner Radius | 0.8 |
| ISO Category Grade | P |
| Insert Style | VCMT |
| ISO Designation | VCMT 110308E-UR |
| Material | Carbide |
| Finish/Coating | MT-CVD |
| Cutting Edge Length | 11.1mm |
| ISO Category | P |
