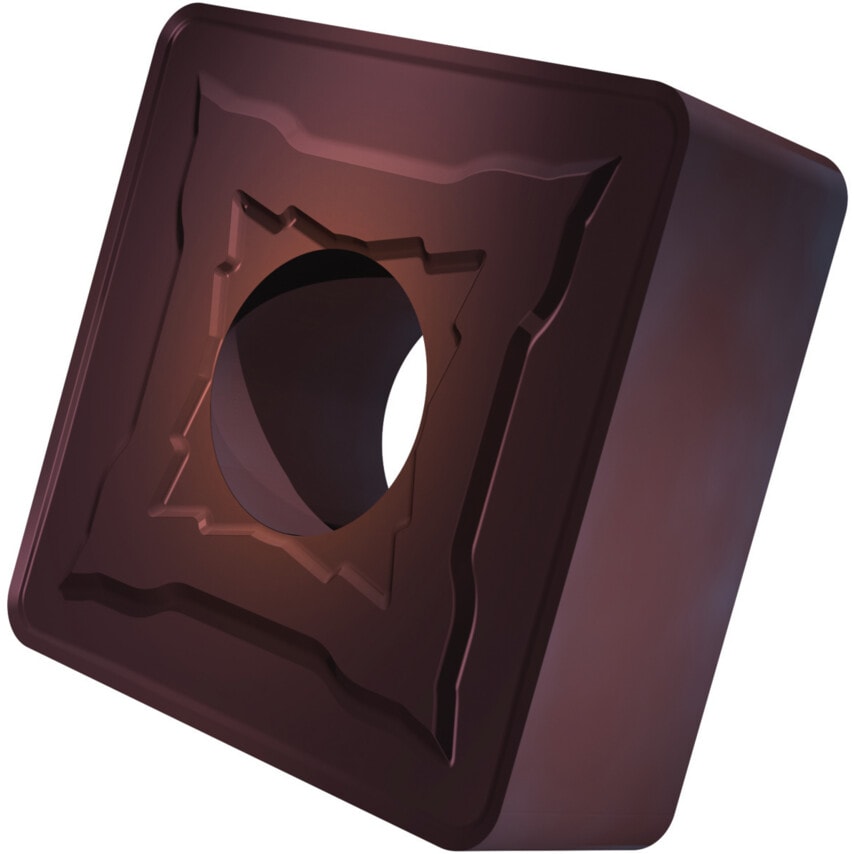

SNMG 150612E-NMR T8430 Turning Insert - Negative

These double-sided square SNMG turning inserts have a negative insert geometry and were designed for the fine to medium machining of steels and cast iron. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 1.6mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast steel Cast iron

Finish/Coating	MT-CVD
Insert Style	SNMG
ISO Cut	M20 - M35 | P20 - P40
Material	Carbide
Thickness	6.35mm
ISO Category Grade	M | P
Corner Radius	1.2
Cutting Edge Length	15.88mm
ISO Designation	SNMG 150612E-NMR
Shape	Square
MFR Part No.	8342372
Inscribed Circle	15.88mm
Chipbreaker	NMR
ISO Category	M | P
Material Application	Cast Steel | High-Temperature Alloys | Stainless Steels | Steels
