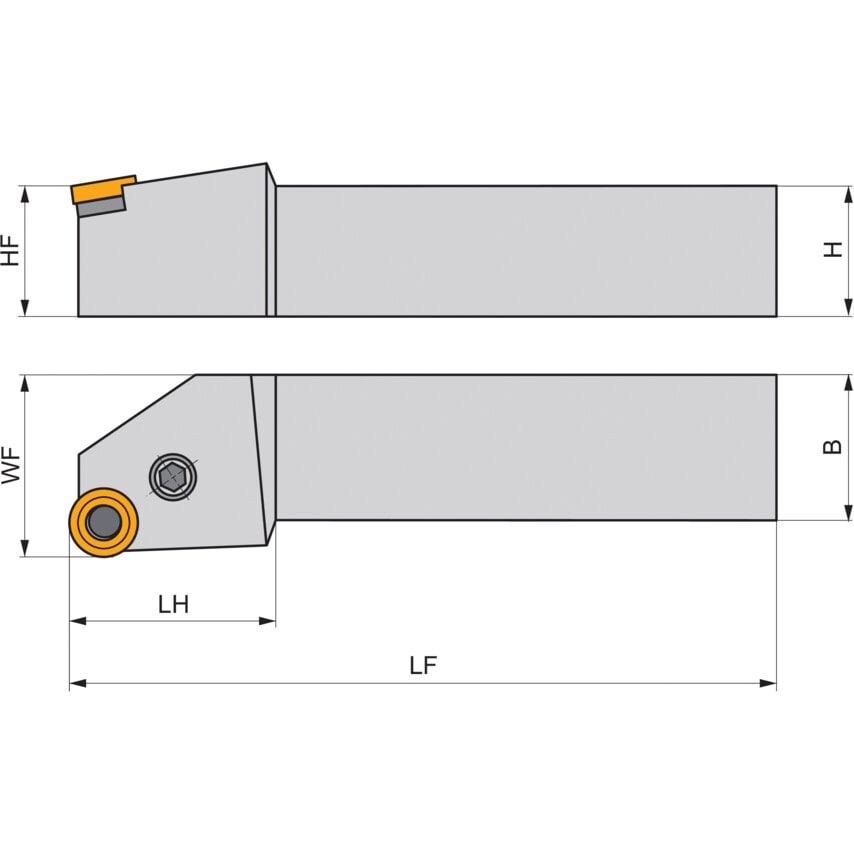

These turning toolholders were designed to hold a round negative insert with a diameter of 15.875mm and a thickness of 6.35mm. The toolholder is left-handed. 32mm tool height x 25mm width x 170mm long for taper turning, single and multi-directional copy turning, and longitudinal turning without shoulder.
Features and Benefits
Nickelized for higher oxidation and wear resistance
Internal coolant channels improve insert tool life
Improved chip evacuation provides high surface quality and reliability
| Cutting Direction | Right Hand |
| Overall Length (l1) | 170mm |
| Head Length (l2) | 34mm |
| Shank Height (h) | 32mm |
| MFR Part No. | 8281357 |
| Product Type | Turning Toolholder |
| Insert Size | 15.88mm |
