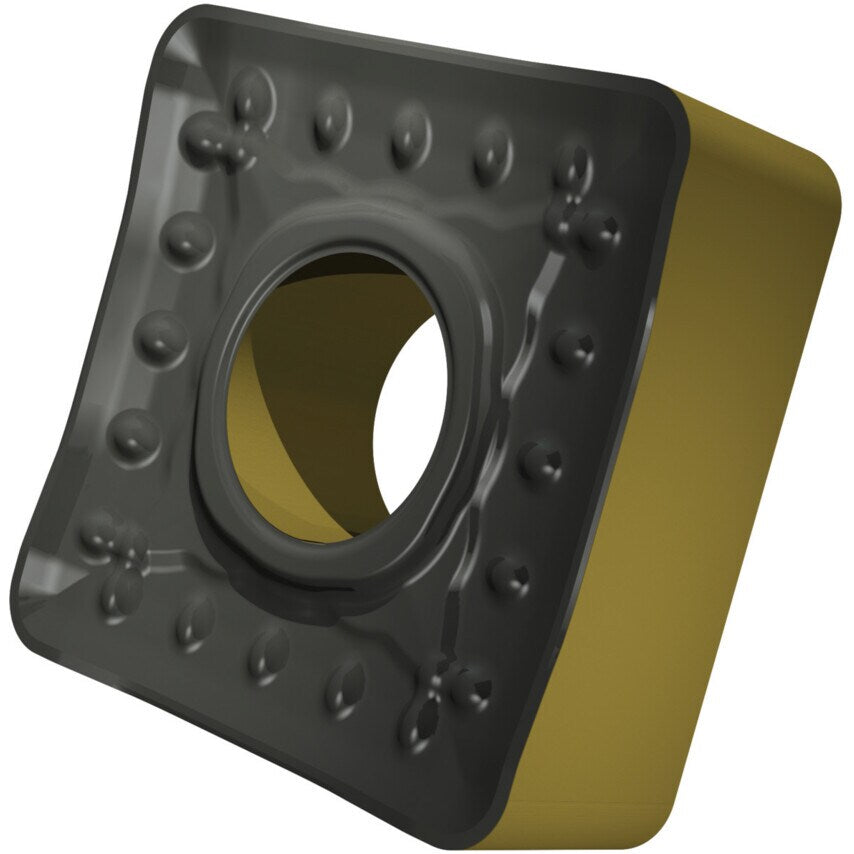

SNMM 120412E-OR T9415 Turning Insert - Negative

This double-sided square SNMM turning insert has a negative insert geometry and was designed for the fine to heavy machining of cast steels and steel. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 1.2mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Cast steel Steel

Thickness	4.76mm
Finish/Coating	MT-CVD
Chipbreaker	OR
Material	Carbide
ISO Designation	SNMM 120412E-OR
ISO Cut	P05 - P30
Corner Radius	1.2
ISO Category	P
Shape	Square
MFR Part No.	8345581
ISO Category Grade	P
Cutting Edge Length	12.7mm
Material Application	Cast Iron | Cast Steel | Steels
Insert Style	SNMM
Inscribed Circle	12.7mm
