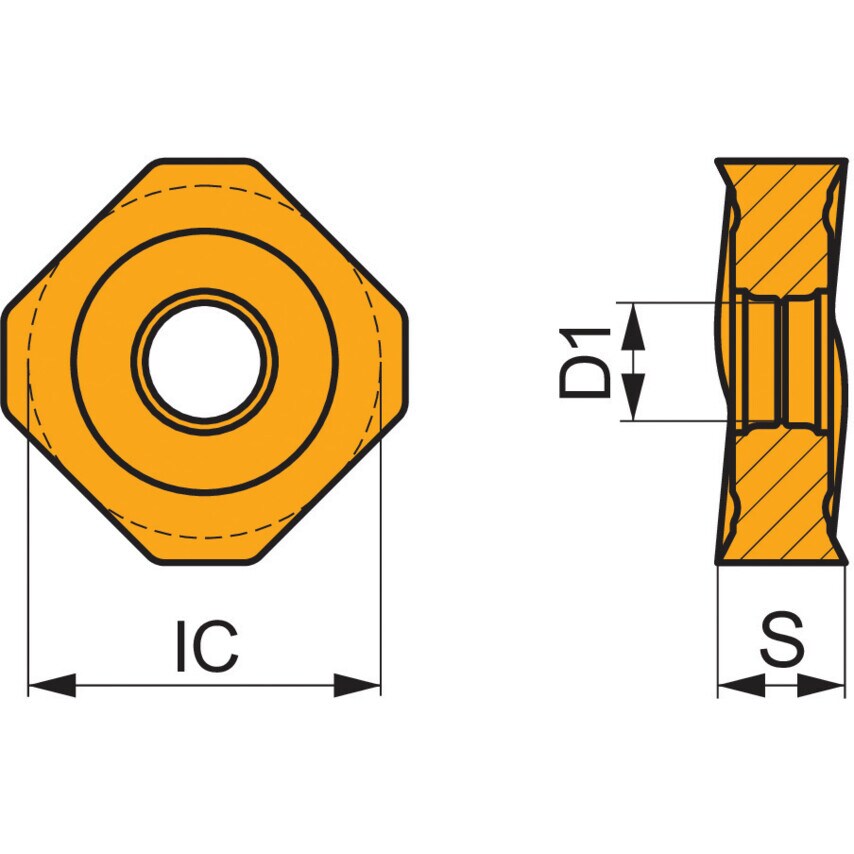

SNMX is a double-sided square milling insert with a maximum depth of cut of 7.0mm, and 0.8mm corner radius. This milling insert was designed for the machining of steel and cast steel, with face mills SON06C, and features PVD-coated, functionally graded, WC-Co carbide.Features and BenefitsPVD coating for improved heat and wear resistance 16-edged pressed insert Typical ApplicationsStainless SteelSteelCast Steel
| Material Application | Cast Steel | High-Temperature Alloys | Stainless Steels | Steels |
| ISO Cut | P25 to P50 |
| MFR Part No. | 8348778 |
| Inscribed Circle | 17mm |
| Corner Radius | 0.8mm |
| Chipbreaker | M |
| Shape | Square |
| Thickness | 5.56mm |
| ISO Designation | SNMX170508SR-M |
