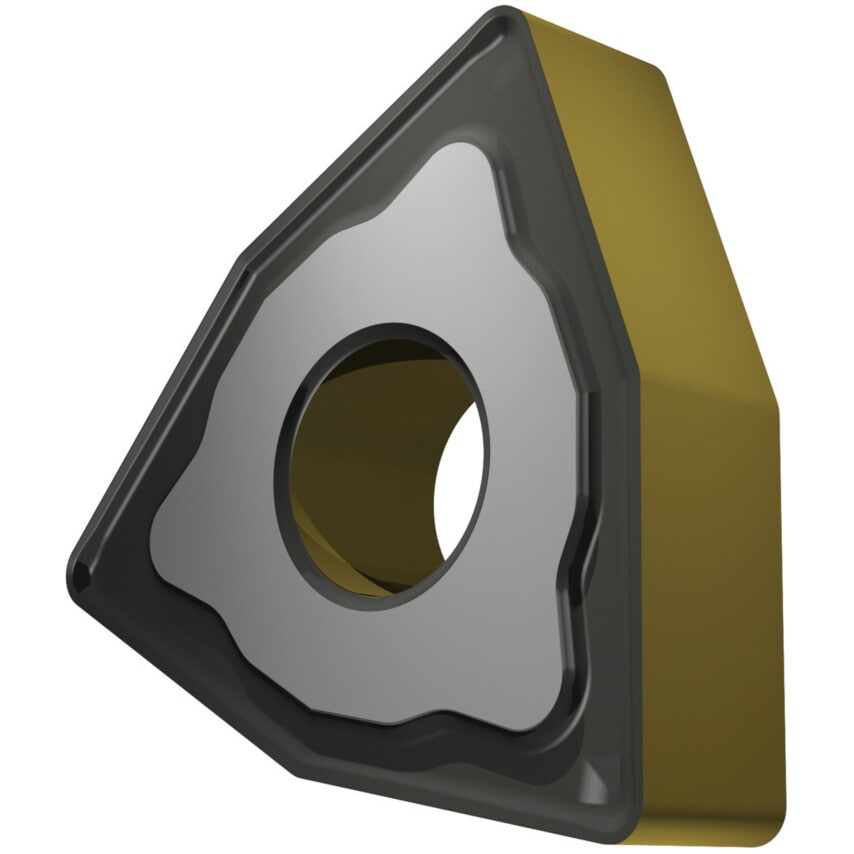

These double-sided trigon WNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of cast steels and steel. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and a 0.8mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Cast steel
Steel
| Insert Size | 12.7mm |
| ISO Cut | P05 - P30 |
| Thickness | 4.76mm |
| ISO Category Grade | P |
| Chipbreaker | NM |
| Manufacturer Grade | T9415 |
| ISO Designation | WNMG 080408E-NM |
| Corner Radius | 0.8mm |
| Finish/Coating | MT-CVD |
| Inscribed Circle | 12.7mm |
| Cutting Edge Length | 8.7mm |
| Material Application | Cast Steel | Steels |
| MFR Part No. | 8345618 |
| Shape | Trigon |
| ISO Category | P |
| Material | Carbide |
| Insert Style | WNMG |
| Product Type | Turning Inserts |
