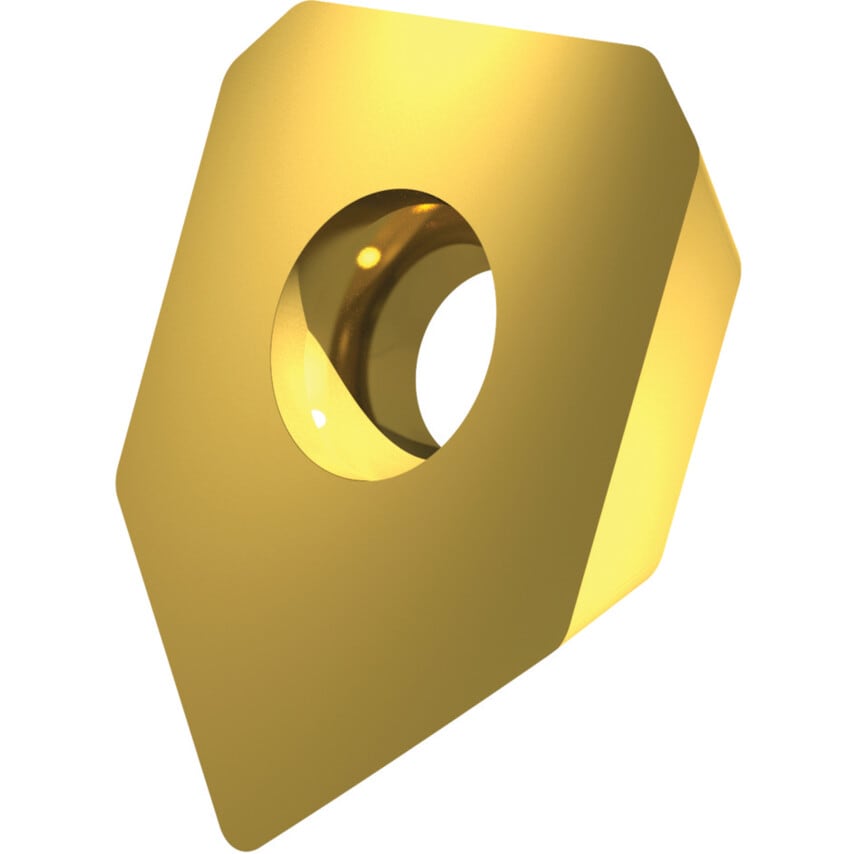

Xdet 13T3AFER M8330 SD13 45 Face Mill INS Wiper

XDET is a square single-sided milling insert with a maximum depth of cut of 6.4mm. These milling inserts were designed for the machining of steel, cast steel, non-ferrous metals, and high-temperature alloys with face mills SSD13F, and feature PVD-coated, functionally graded WC-Co carbide. Features and Benefits PVD coating provides improved heat and wear resistance Insert is economical and precise Ideal for general engineering and maintenance Typical Applications Stainless Steel Steel Cast Steel Cast Iron

Shape	X - Special design
MFR Part No.	8202815
Material	Carbide
Clearance Angle	15\u00b0
Inscribed Circle	13.38mm
Insert Style	XDET
ISO Designation	XDET 13T3AFER
Material Application	Cast Iron | Cast Steel | Stainless Steels | Steels
