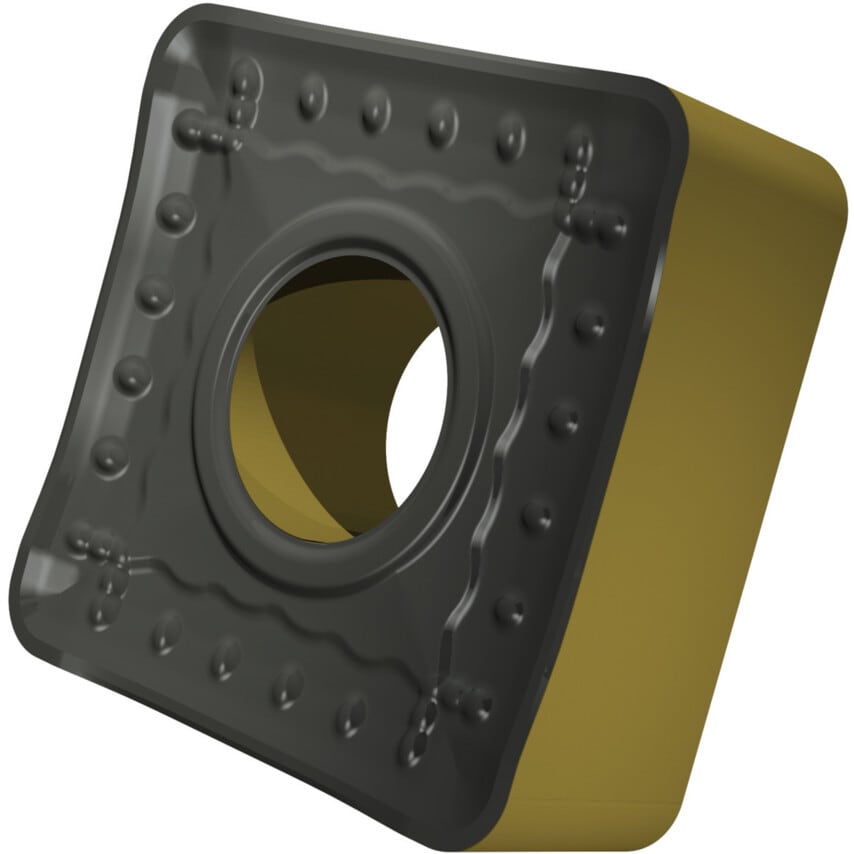

SNMM 150616E-OR T9415 Turning Insert - Negative

This double-sided square SNMM turning insert has a negative insert geometry and was designed for the medium to extra heavy machining of cast steels and steel. The inscribed circle has a diameter of 15.875mm, 6.35mm thickness, and 1.6mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Cast steel Steel

MFR Part No.	8345582
ISO Category Grade	P
Shape	Square
Chipbreaker	OR
ISO Category	P
Cutting Edge Length	15.88mm
Material	Carbide
Material Application	Cast Iron | Cast Steel | Steels
Inscribed Circle	15.88mm
Thickness	6.35mm
Insert Style	SNMM
ISO Cut	P05 - P30
Corner Radius	1.6
ISO Designation	SNMM 150616E-OR
Finish/Coating	MT-CVD
