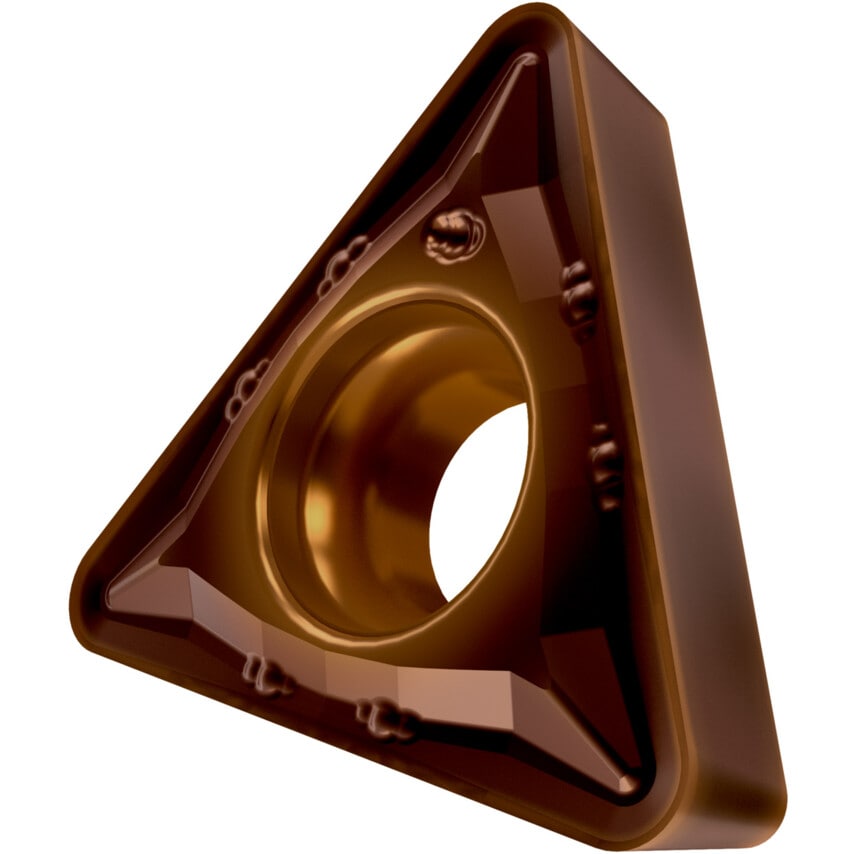

TCMT 110204E-FM Insert Grade T8430

This triangular single-sided positive turning insert is the epitome of precision machining, offering a seven-degree clearance for versatile performance in common conditions. The ISO-tolerance class-M indexing accuracy guarantees reliability for precise machining tasks, while the T8430 grade, a PVD-coated fine-grained WC-Co carbide excels in fine to medium machining of steels and stainless-steels. Features and Benefits Smooth machining with rounded edges for light feed and shallow depths, ensuring strength and mitigating work-hardening risks The 3-D chip-breaker guarantees precise chip control across diverse feeds and depths for optimised machining Medium-width chip groove reduces cutting resistance and vibration, enhancing overall machining performance PVD coating enhances thermal cracking resistance and overall performance, especially in fluctuating cutting temperatures Multi-layered PVD coating, features a thick TiN layer for crater wear resistance and a hard AlTiN layer for flank wear resistance, optimising productivity and durability Typical Applications Steel Stainless steel

ISO Designation	TCMT110204E-FM
Manufacturer Grade	T8430
Insert Style	TCMT
Shape	60\u00b0 Triangle
Insert Size	11
Inscribed Circle Diameter	6.35mm
Corner Radius	0.4mm
Thickness	2.38mm
ISO Cut	P20-P40
Material	Carbide
Chipbreaker	FM
Finish/Coating	PVD
Clearance Angle	7\u00b0
Material Application	Steels
MFR Part No.	7973855
Insert Shape	Triangular
Cutting Edge Length	11mm
