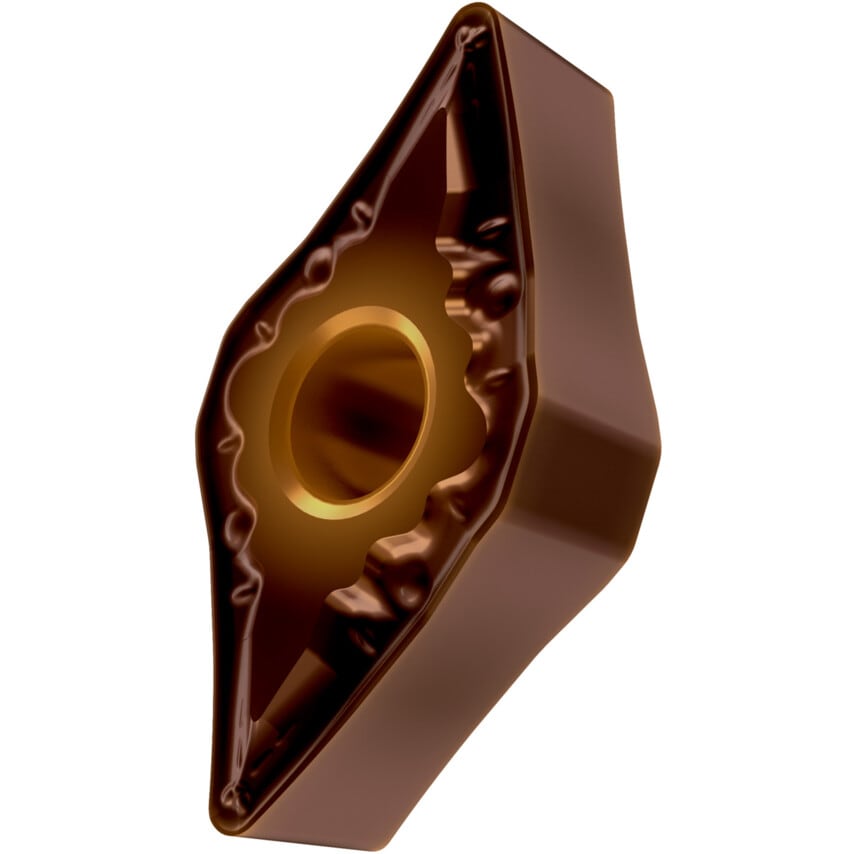

The double-sided negative turning insert from Dormer Pramet features a 55-degree rhomboid design and an ISO-tolerance class-M indexing precision. Crafted from grade T8430 WC-Co carbide, the chip-breaker FM has rounded cutting edges to ensure efficient chip evacuation, preventing tool jamming. This cutting-edge solution optimises machining processes, offering reliability and consistent, high-quality results.
Features and Benefits
Medium-wide negative T-land enhances cutting-edge strength for versatile machining
3-D chip-breaker with protruded groove expands chip-breaking limits, offering varied feed and depth options
WC-Co substrate with submicron-grained structure provides high hardness and wear resistance
PVD coating enhances thermal cracking resistance and performance in fluctuating cutting temperatures
Multi-layered PVD coating with TiN and AlTiN layers ensures durability and resistance to crater and flank wear
Unique Titanium-Boron-Nitride (TiBN) top layer reduces build-up edge and improves overall performance
Typical Applications
Steel machining
Automotive
Engineering
General engineering applications
| ISO Designation | DNMG110408E-FM |
| ISO Cut | P20-P40 |
| Insert Size | 11 |
| Inscribed Circle | 9.53mm |
| ISO Category | M |
| Finish/Coating | PVD |
| Cutting Edge Length | 11.6mm |
| Corner Radius | 0.8mm |
| Thickness | 4.76mm |
| Chipbreaker | FM |
| Material Application | Steels |
| Insert Style | DNMG |
| MFR Part No. | 7977351 |
| Manufacturer Grade | T8430 |
| Shape | 55\u00b0 Rhombic |
| Material | Carbide |
