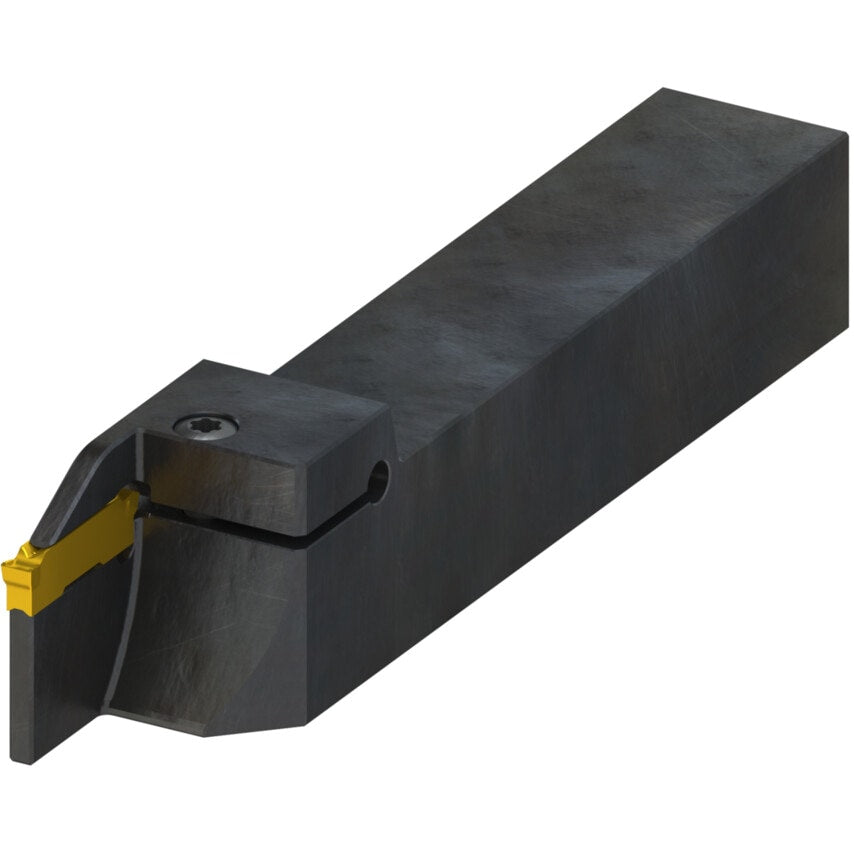

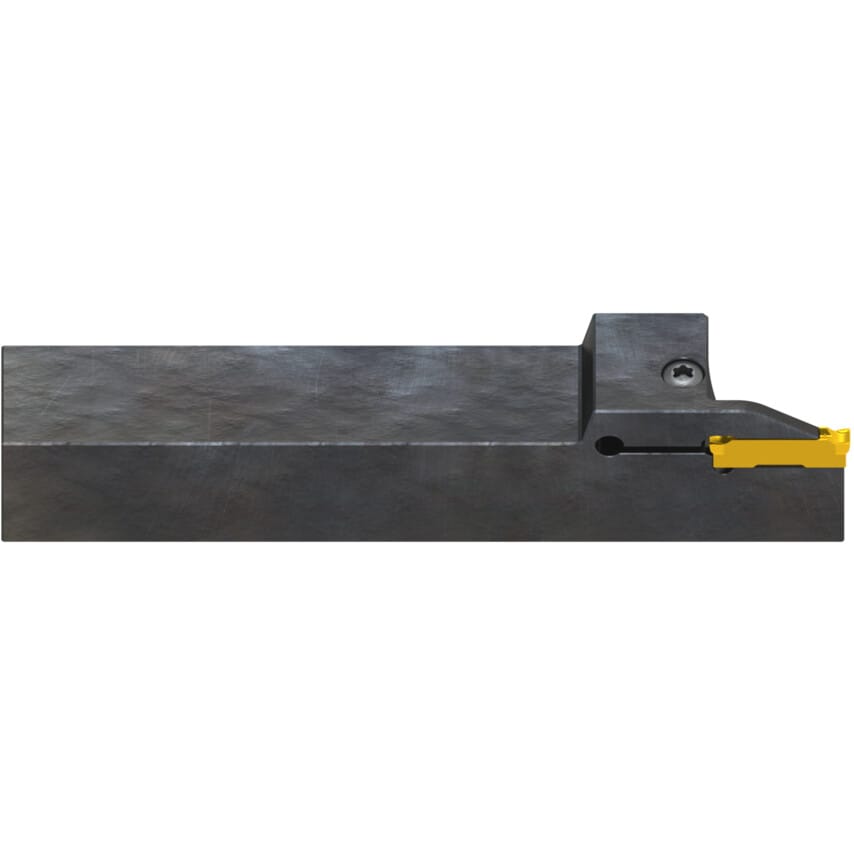

Introducing the Dormer Pramet clamp grooving tool, designed for precision machining applications. This external parting-off and grooving tool features an advanced design to meet various machining needs. Specifically crafted for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off, and tube parting-off. The left-handed configuration ensures optimal performance, and the insert's parallel alignment with the shank enhances versatility. With a maximum parting diameter of 80mm, this tool is ideal for a range of machining tasks. Experience efficient and accurate machining with this specialized grooving tool.
Features and Benefits
Deep parting-off and grooving due to 25mm long double edged inserts
Typical Applications
H - Hardened materials (any engineering metal with a hardness 45HRC)
K - Cast Iron (castings of iron and carbon alloys with 2% carbon content)
M - Stainless steel (corrosion resistant steels with 11% chromium content)
N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
P - Steel and cast steel (steels with alloy content 10% and a hardness of < 45HRC)
S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Type | Tool Holders |
| Minimum Cutting Width | 4mm |
| Shank Width | 25mm |
| Maximum Cutting Width | 4mm |
| Shank Height | 25mm |
| Hand Type | Left |
| Overall Length | 150mm |
| ISO Designation | GL4-D |
