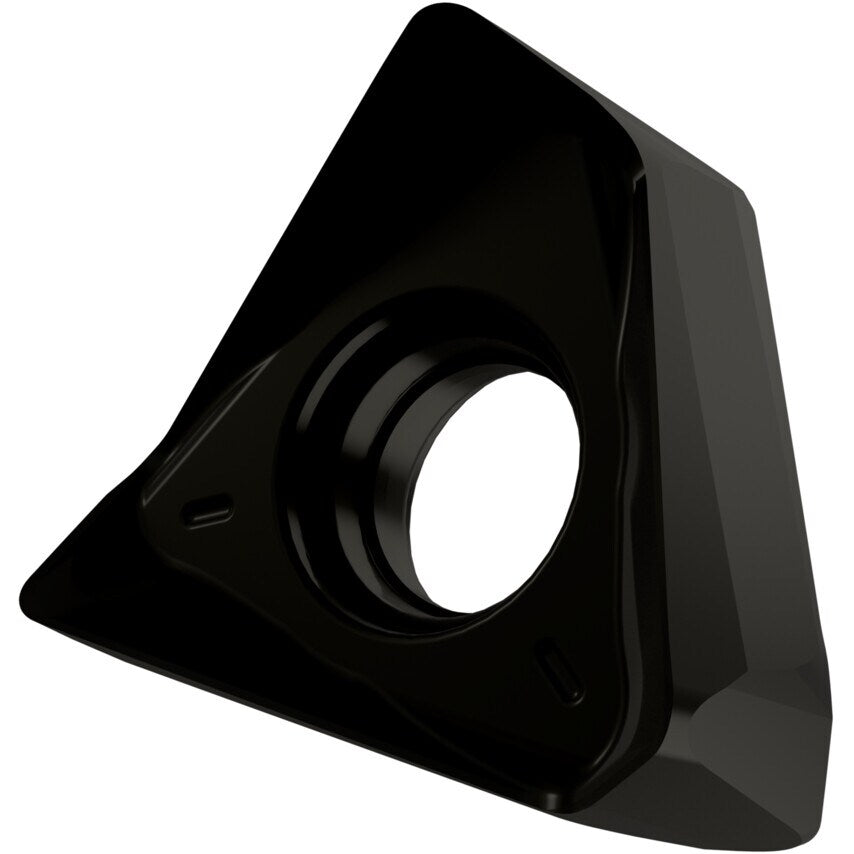

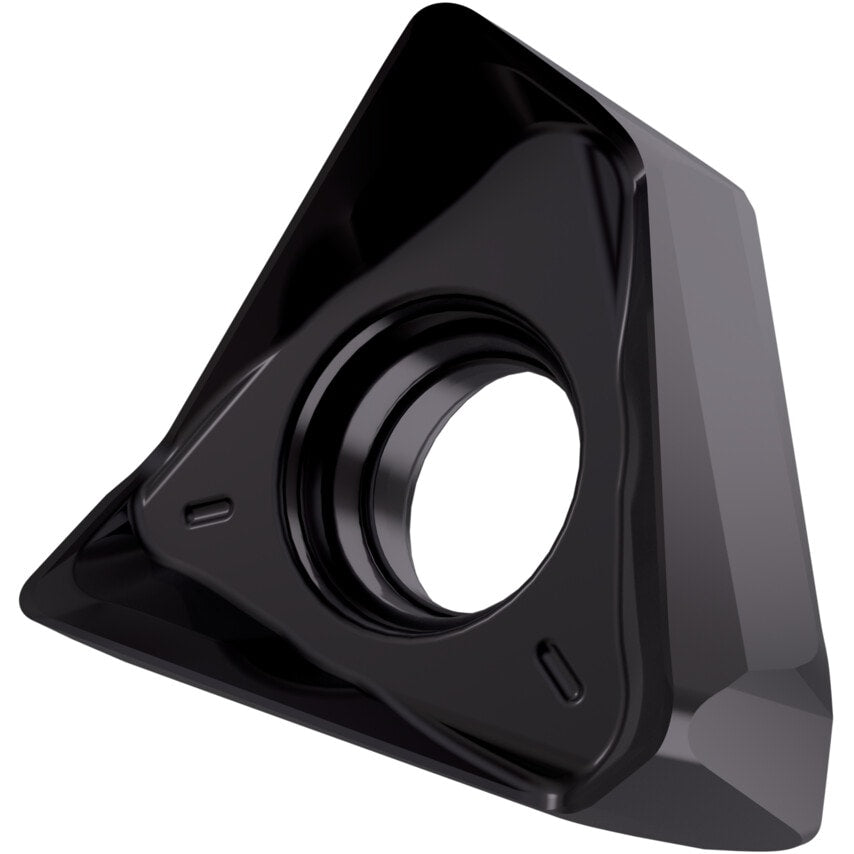

The Pramet double-sided milling insert is designed for efficient machining with shoulder face mills STN16. With a triangular shape and rounded cutting edges, this insert is optimized for a maximum depth of cut of 10.0mm. It features a precise indexing accuracy conforming to ISO-tolerance class-G, ensuring reliable and consistent performance. The insert is constructed from 8215 PVD coated fine-grained WC-Co carbide, falling within the ISO-grade range of P10 to P20. This composition makes it well-suited for the machining of steel, providing durability and high-performance capabilities.
Features and Benefits
Reduced cutting forces, leading to smooth and quiet machining for process security
P - Steel and cast steel (steels with alloy content 10% and a hardness of < 45HRC)
| Material | Cobalt-Enriched Carbide |
| MFR Part No. | TNGX 160608SR-M |
| Clearance Angle | 60\u00b0 |
| Cutting Direction | Neutral |
| ISO Cut | 10 to 20 |
| Material Application | Cast Steel | Steels |
| Cutting Edge Length | 10mm |
| Shape | Triangle |
| Corner Radius | 0.8mm |
