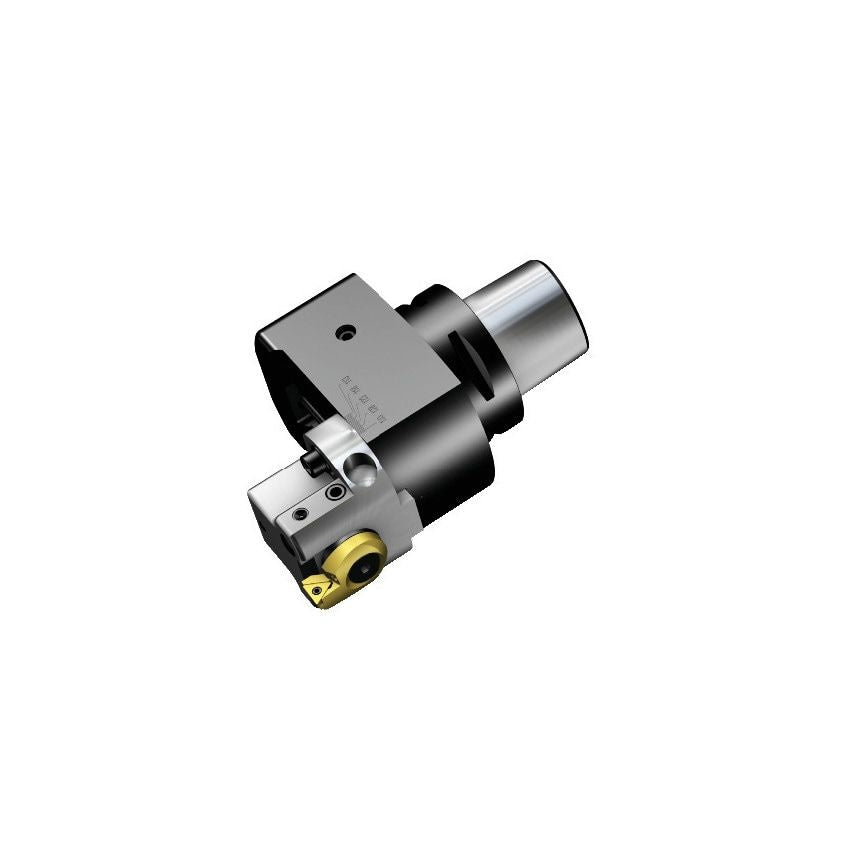

Product Range: CoroBore 826Tool Type: Fine boring toolsFine boring tool with excellent chip controlFeatures & Benefits- Fine boring with click-wise diameter setting in microns- High-precision nozzles for coolant directed to the cutting edge- Hole tolerances from IT6- Rigid interfaces between head and cartridge for stable, vibration-free boring- Coolant through the toolApplication AreaFine boring, Hole tolerance: IT6, Diameter range 361267 mm (1.41749.882 inch)
| Body Diameter | 2.48in |
| Weight | 1.94kg |
| Cutting Diameter | 82mm |
| Maximum Adjustment Limit | 0.65mm |
| Standards Met | ISO26623-1 |
| Minimum Cutting Diameter | 81.35mm |
| CoroPak | 105 |
| Connection Diameter | 63mm |
| Unit System | Metric |
| Tool Cutting Edge Angle | 92\u00b0 |
| Maximum Cutting Diameter | 82.65mm |
| Body Material | Steel |
| Functional Length | 78mm |
| MFR Part No. | 7323220290789 |
| Through Hole Function Property | Yes |
