Product Range: CoroBore XLTool Type: Rough boring and fine boringThe CoroBore XL system is a group of large diameter boring tools. The wide application range covers rough and fine boring, interpolation turning as well as face grooving and the unique SpiroGrooving method.Features & Benefits- Large-diameter boring system- Silent Tools adapters available for vibration-free boring- Optimized cartridges designed for greatest stability- Internal coolant to the cutting edge- CoroBore 111 dedicated rough boring insertsApplication Area- Conventional boring, back boring and external boring- Rough boring- Fine boring- SpiroGrooving- Face grooving- Interpolation turning- The CoroBore XL system covers diameters 1481275 mm (5.82750.197 inch)

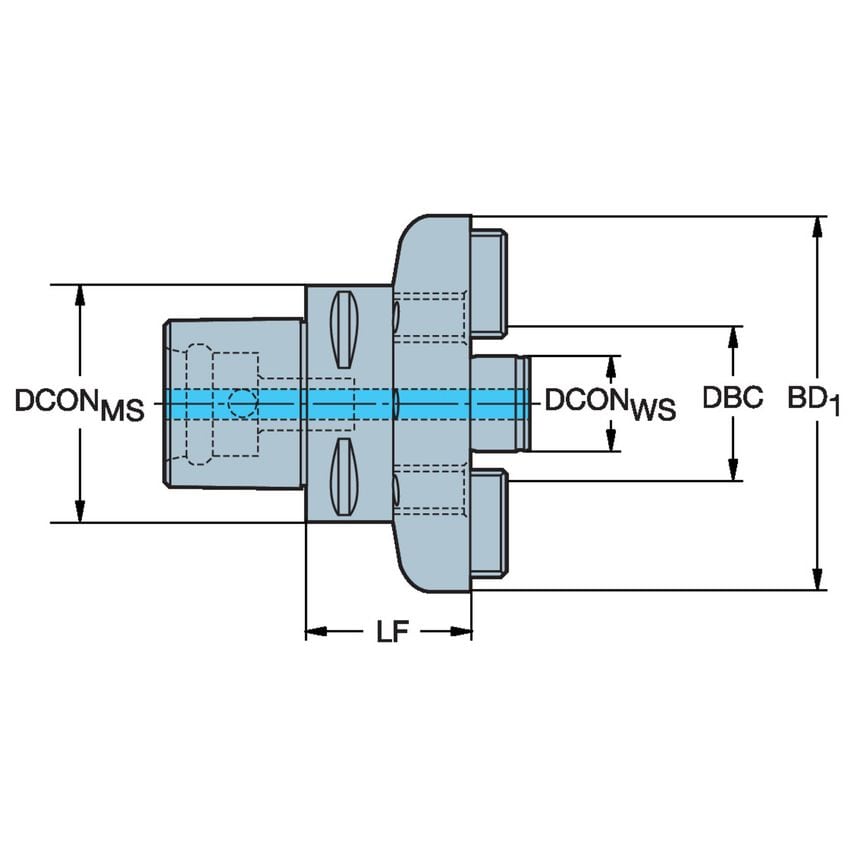

| Functional Length | 70mm |
| Coolant Entry Style Code | 10 |
| Body Diameter | 6.3in |
| Coolant Exit Style | 1 |
| Through Hole Function Property | Yes |
| Standards Met | ISO26623-1 |
| Body Material | Steel |
| Weight | 8.67kg |
| Body Half Taper Angle | 0\u00b0 |
| Connection Diameter | 100mm |
| MFR Part No. | 25924284 |
| Unit System | Metric |
| Adaptive Interface Workpiece Direction | CoroBore XL Arbor -metric |
| CoroPak | 25 |
