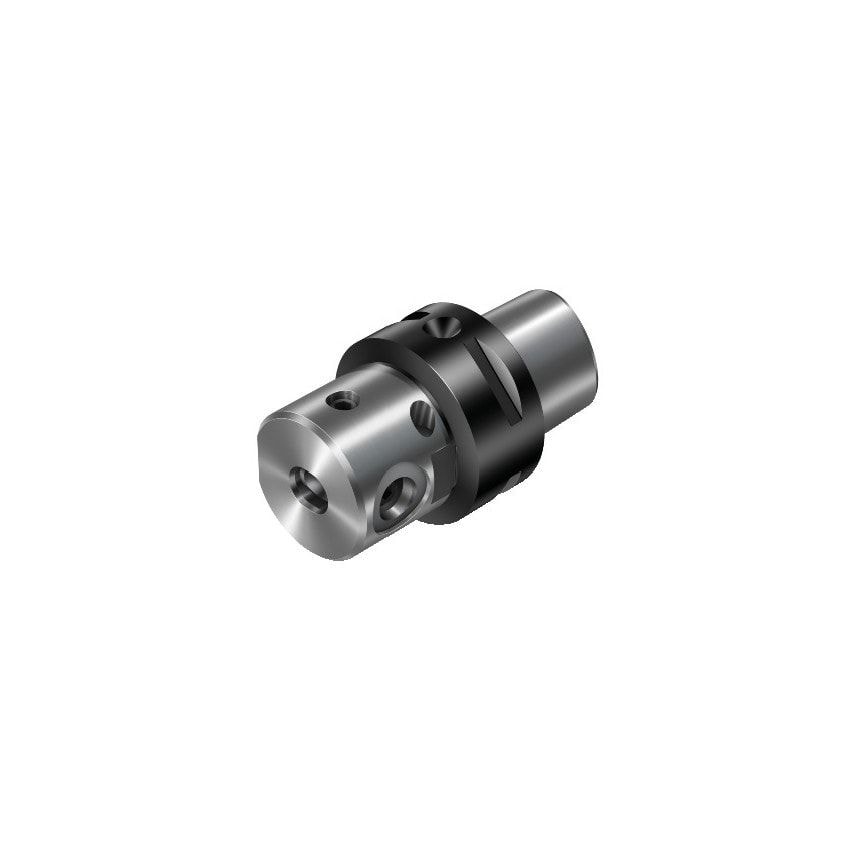

Product Range: CoroBore 824Boring small-diameter holes even at long overhangs has never been easier. Sandvik Coromant is now expanding the fine boring offer with new boring concepts. CoroTurn 824 XS boring bars and the exchangeable-head (EH) system make boring down to 1 mm (0.039 inch) diameter possible, while keeping your tool inventory at a minimum.Features & Benefits- Small-diameter fine boring- Hole tolerances from IT6- Boring with solid carbide boring bars reduces vibration and increases stability- Rigid system for maximum stability with internal coolant supplyApplication- Fine boring of small holes in all materials- Stable boring at longer overhangs (up to 6 diameter)- Better accessibility with small boring head diameters, making it possible to bore in complex components- Solid carbide shanks provide longer boring depths up to 6 diameter
| Weight | 0.21kg |
| Standards Met | ISO26623-1 |
| Minimum Cutting Diameter | 6mm |
| Unit System | Metric |
| Body Material | Steel |
| Coolant Exit Style | 1 |
| CoroPak | 12 |
| MFR Part No. | 26424091 |
| Through Hole Function Property | Yes |
| Maximum Cutting Diameter | 10mm |
| Connection Diameter | 32mm |
| Functional Length | 36mm |
| Adaptive Interface Workpiece Direction | CoroTurn XS -Metric |
