CoroPak: 83.1

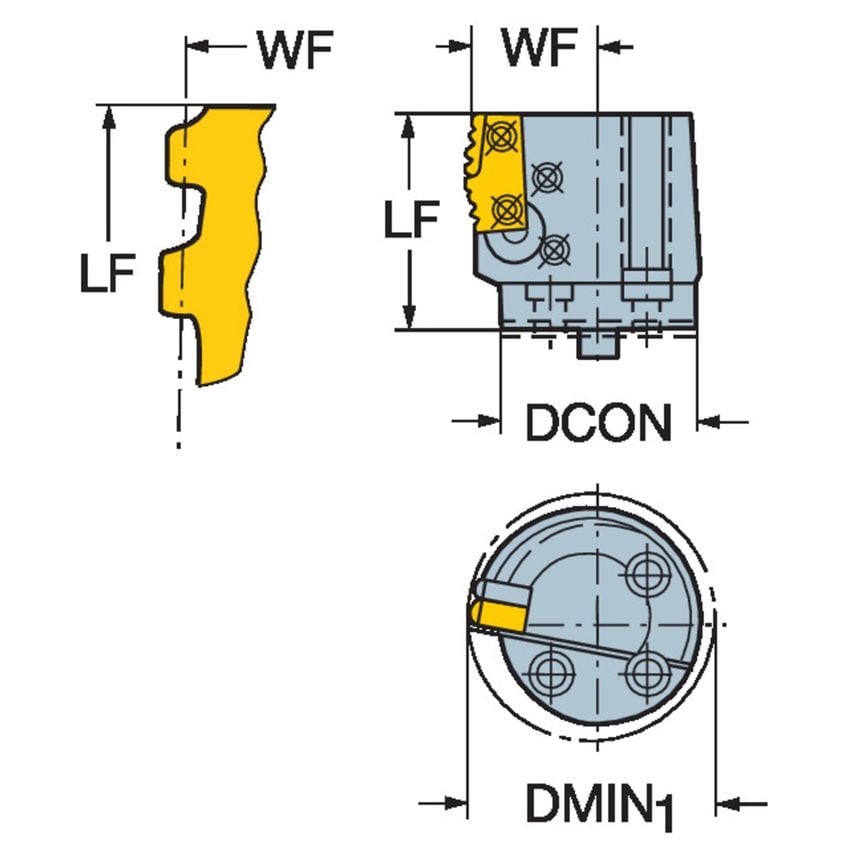

Functional Length: 44.2 mm

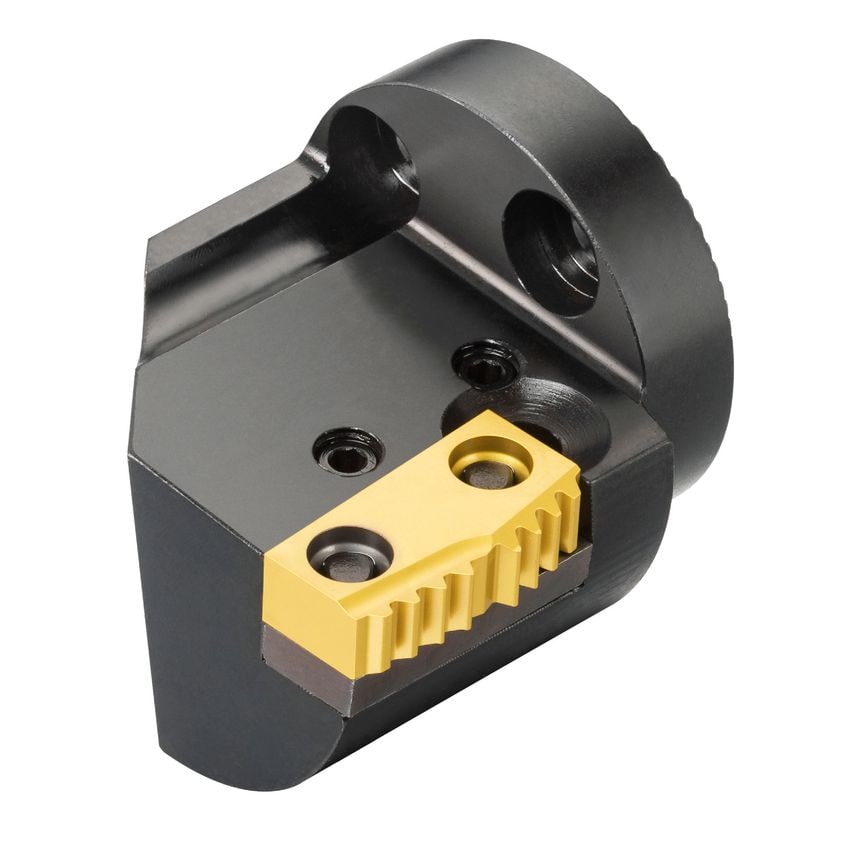

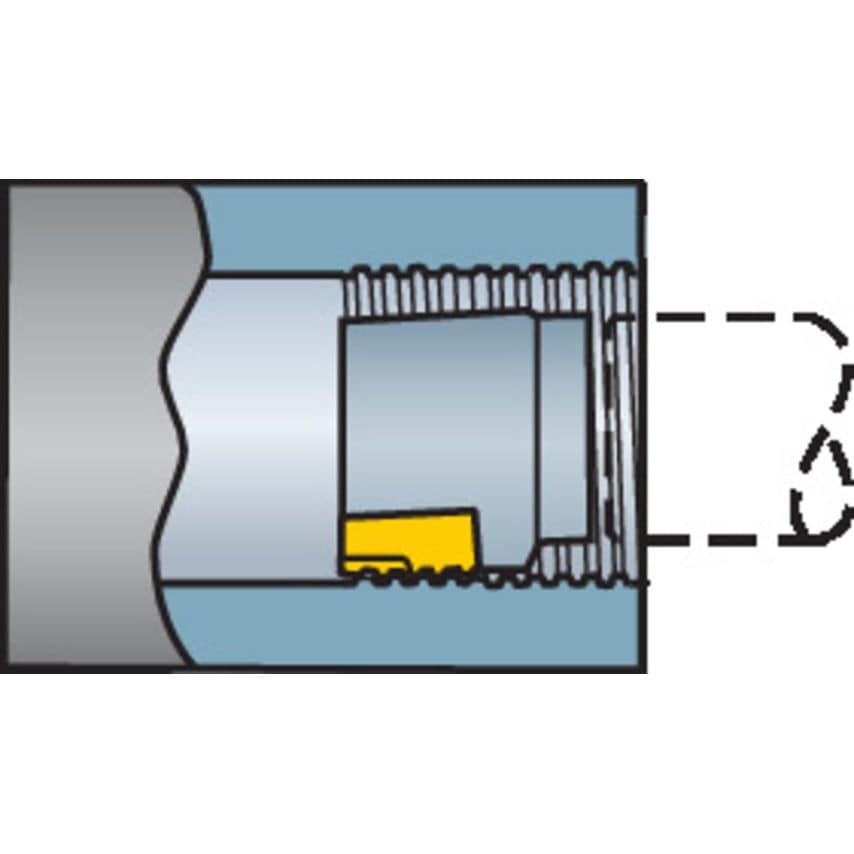

Product Type: T-Max Twin-Lock head for thread turning
Coolant Entry Style Code: 0: without coolant
Through Hole Function Property: Yes
Unit System: Metric
Adaptive Interface Machine Direction: SL head (screw mounted) -size 40
Machine Side Body Angle: 0 deg
Item Weight: 0.322 kg
Minimum Bore Diameter: 60.3 mm
| Machine Side Body Angle | 0\u00b0 |
| Connection Diameter | 40mm |
| Minimum Bore Diameter | 60.3mm |
| Functional Length | 7.94mm |
| Weight | 0.32kg |
| Through Hole Function Property | Yes |
| Axial Clearance Angle | 10\u00b0 |
| Coolant Entry Style Code | 98 |
| Unit System | Metric |
| CoroPak | 35 |
| Maximum Overhang | 44.2mm |
| Hand Preference | Right |
| MFR Part No. | 10433183 |
