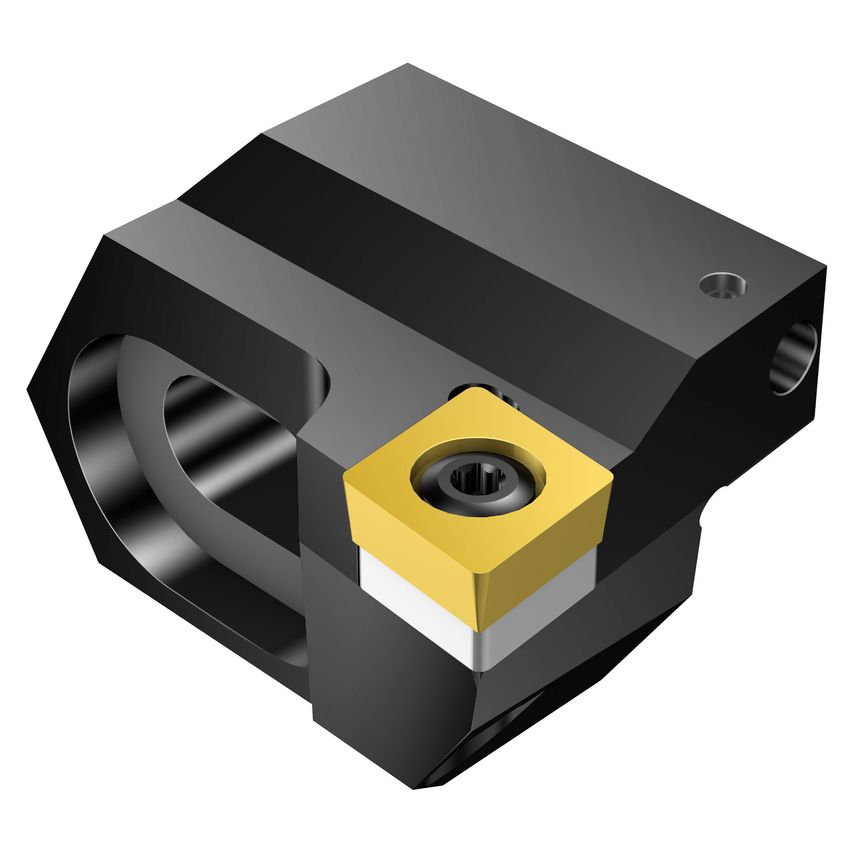

Product Range: CoroBore 820Tool Type: Rough boring toolsCoroBore 820 is your first choice for rough boring. The comprehensive program of tool bodies, slides, shims and cutting inserts allow CoroBore 820 to be configured to suit the widest possible range of applications. The same programme can be utilized for productive boring, step boring and single edge boring. The system consists of adaptors with matching slides, shims and covers, making it possible to adapt the tool to various materials and conditions.Benefits- Versatile with three different operation types in one tool- Large standard assortment of CoroTurn 107 and T-Max P inserts- High metal removal rate due to three insert designFeatures- Short, rigid and compact giving maximum stability- Optional slide assemblies, individually adjustable axially and radially giving reduced inventory costs.- Cutting fluid through the tool for good chip evacuationApplication- Dedicated geometries and grades for all materials- Use CoroTurn 107 screw clamping as first choice- Use T-Max P and CoroTurn RC for improved economy and process security in stable conditions.
| Tool Cutting Edge Angle | 95\u00b0 |
| Functional Length | 26mm |
| CoroPak | 80 |
| Through Hole Function Property | Yes |
| Coolant Entry Style Code | 32 |
| Unit System | Metric |
| Overall Height | 42.2mm |
| Hand Preference | Right |
| Adaptive Interface Machine Direction (ADINTMS) | CoroBore 820 - Size I |
| Overall Width | 111.9mm |
| Weight | 0.7kg |
| MFR Part No. | 12055971 |
| Minimum Bore Diameter | 235mm |
