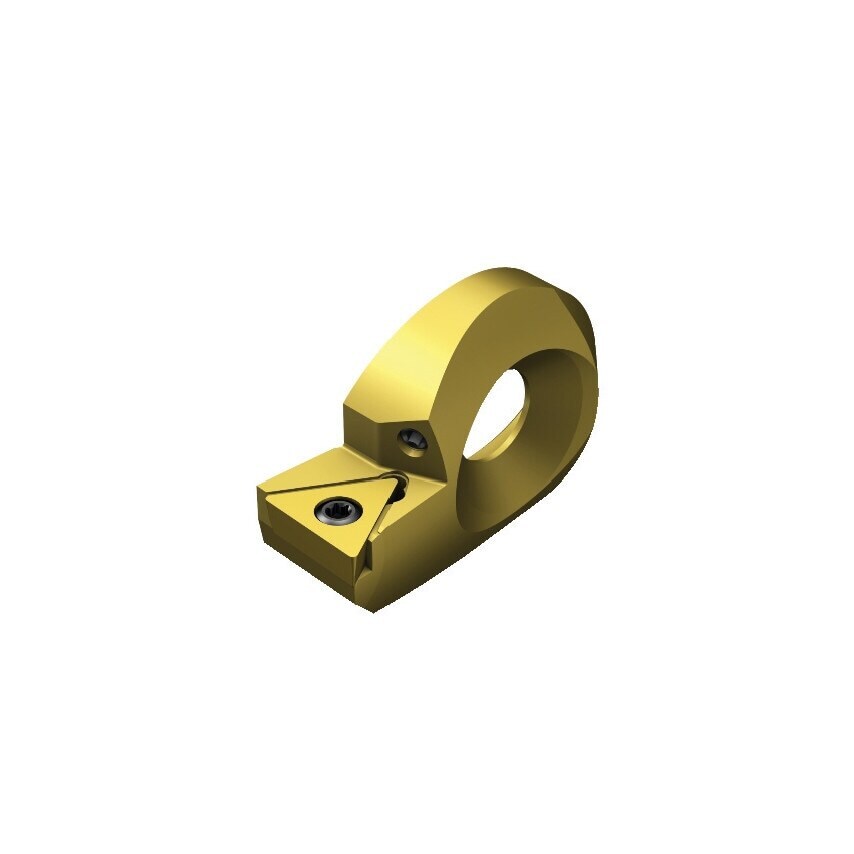

Product Range: CoroBore 826Tool Type: Fine boring toolsFine boring tool with excellent chip controlFeatures & Benefits- Fine boring with click-wise diameter setting in microns- High-precision nozzles for coolant directed to the cutting edge- Hole tolerances from IT6- Rigid interfaces between head and cartridge for stable, vibration-free boring- Coolant through the toolApplication AreaFine boring, Hole tolerance: IT6, Diameter range 361267 mm (1.41749.882 inch)
| Functional Length | 23mm |
| Through Hole Function Property | Yes |
| Minimum Bore Diameter | 58mm |
| MFR Part No. | 7323220291137 |
| Tool Cutting Edge Angle | 92\u00b0 |
| CoroPak | 105 |
| Coolant Entry Style Code | 32 |
| Overall Height | 23.5mm |
| Overall Width | 13.2mm |
| Hand Preference | Right |
| Adaptive Interface Machine Direction (ADINTMS) | CoroBore 826 - Size C |
| Unit System | Metric |
