Product Range: CoroBore XLTool Type: Rough boring and fine boringThe CoroBore XL system is a group of large diameter boring tools. The wide application range covers rough and fine boring, interpolation turning as well as face grooving and the unique SpiroGrooving method.Features & Benefits- Large-diameter boring system- Silent Tools adapters available for vibration-free boring- Optimized cartridges designed for greatest stability- Internal coolant to the cutting edge- CoroBore 111 dedicated rough boring insertsApplication Area- Conventional boring, back boring and external boring- Rough boring- Fine boring- SpiroGrooving- Face grooving- Interpolation turning- The CoroBore XL system covers diameters 1481275 mm (5.82750.197 inch)

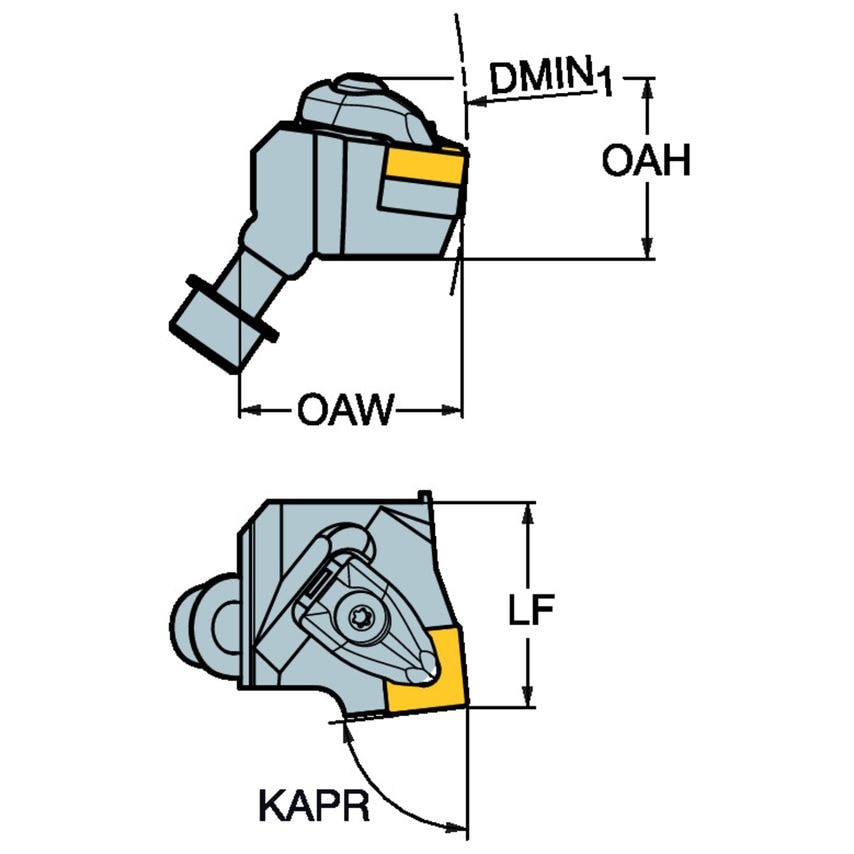

| Overall Width | 44.54mm |
| Overall Height | 40.78mm |
| CoroPak | 25 |
| Functional Length | 40mm |
| Coolant Entry Style Code | 15.2 |
| Minimum Bore Diameter | 148mm |
| MFR Part No. | 25924287 |
| Through Hole Function Property | Yes |
| Unit System | Metric |
| Weight | 0.3kg |
| Tool Cutting Edge Angle | 90\u00b0 |
| Hand Preference | Right |
