Product Range: CoroBore XLTool Type: Rough boring and fine boringThe CoroBore XL system is a group of large diameter boring tools. The wide application range covers rough and fine boring, interpolation turning as well as face grooving and the unique SpiroGrooving method.Features & Benefits- Large-diameter boring system- Silent Tools adapters available for vibration-free boring- Optimized cartridges designed for greatest stability- Internal coolant to the cutting edge- CoroBore 111 dedicated rough boring insertsApplication Area- Conventional boring, back boring and external boring- Rough boring- Fine boring- SpiroGrooving- Face grooving- Interpolation turning- The CoroBore XL system covers diameters 1481275 mm (5.82750.197 inch)

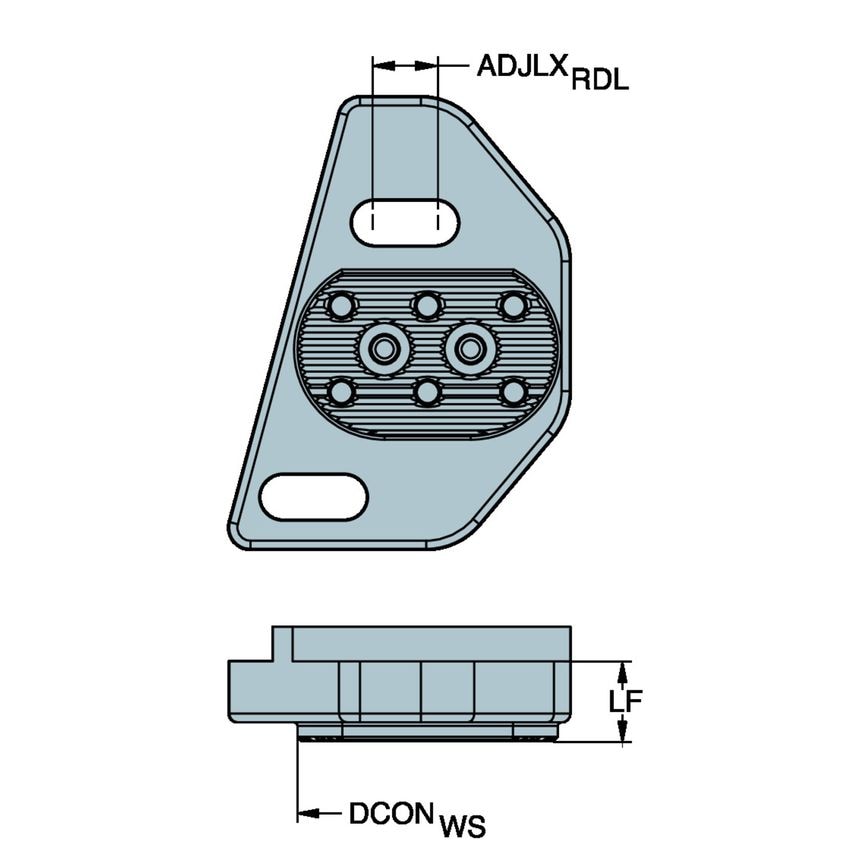

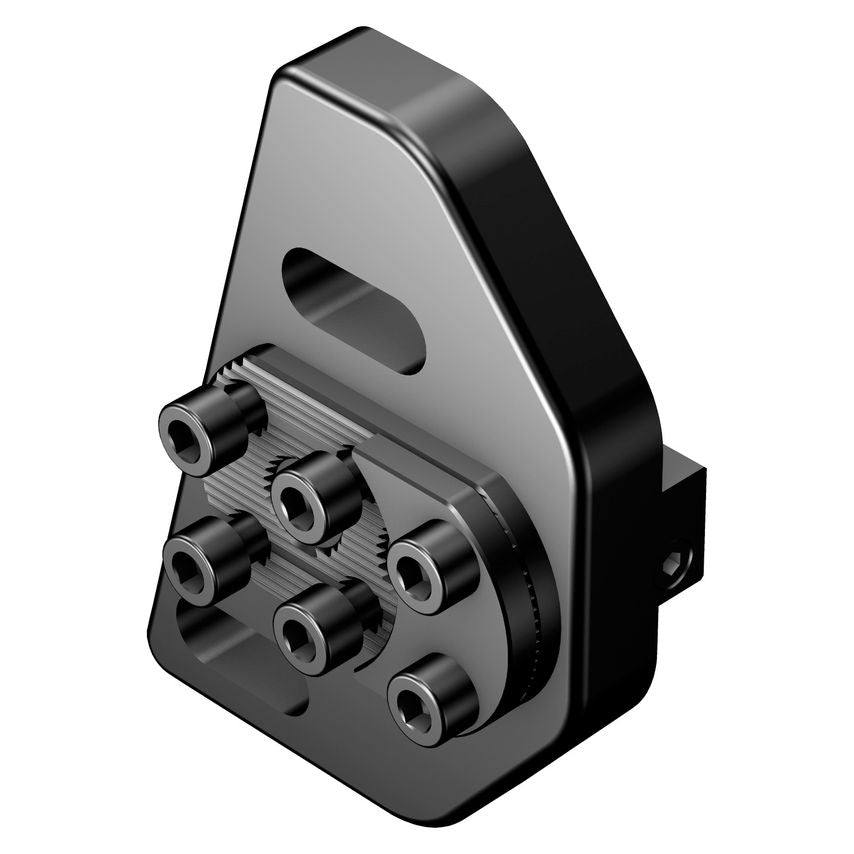

| Adaptive Interface Machine Direction (ADINTMS) | Boring Slide - Size S14R |
| Through Hole Function Property | Yes |
| CoroPak | 110 |
| MFR Part No. | 7323221179748 |
| Body Material | Steel |
| Weight | 0.33kg |
| Overall Height | 70mm |
| Functional Length | 17mm |
| Overall Width | 40.5mm |
| Unit System | Metric |
| Workpiece Side Body Angle | 0\u00b0 |
| Maximum Adjustment Limit | 11.5mm |
