Proto save
£49.50
Loading...

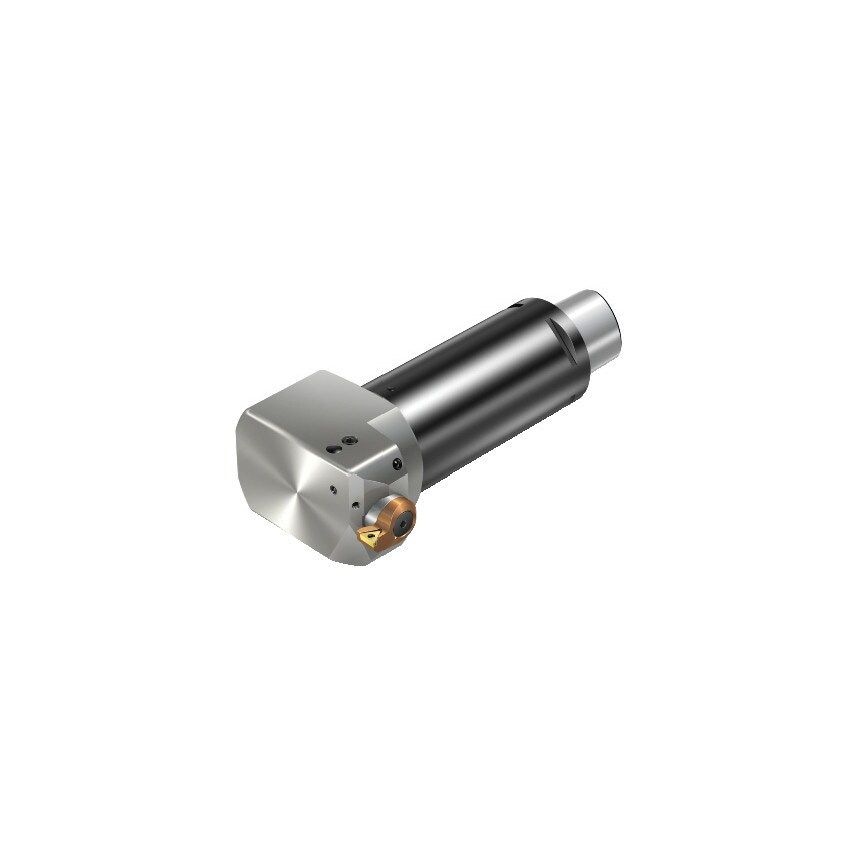

Product Range: CoroBore 825Tool Type: Fine boring toolsFine boring tools for high-precision boringFeatures & Benefits- Flexible fine boring tools with nonius adjustment- Hole tolerances from IT6- Available as damped tool for vibration-free boring, even with long overhangs- Coolant through the toolApplication areaOptimized geometries and grades for all materials, Used in conventional fine boring and back boring
| Maximum Cutting Diameter | 87mm |
| CoroPak | 220 |
| Body Diameter | 2.48in |
| Standards Met | ISO26623-1 |
| MFR Part No. | 26423799 |
| Through Hole Function Property | Yes |
| Maximum Adjustment Limit | 9mm |
| Unit System | Metric |
| Functional Length | 150mm |
| Weight | 2.15kg |
| Minimum Cutting Diameter | 69mm |
| Overall Height | 51mm |
| Body Material | Steel/Aluminium |
| Tool Cutting Edge Angle | 92\u00b0 |
| Connection Diameter | 50mm |
| Usable Length | 150mm |
