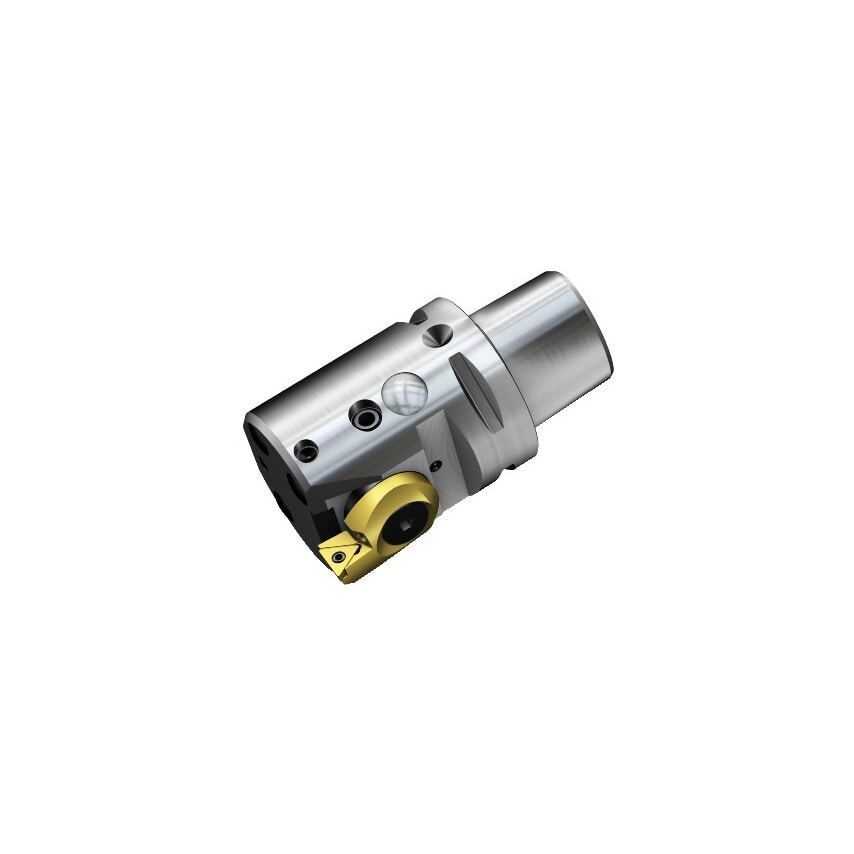

Product Range: CoroBore 826Tool Type: Fine boring toolsFine boring tool with excellent chip controlFeatures & Benefits- Fine boring with click-wise diameter setting in microns- High-precision nozzles for coolant directed to the cutting edge- Hole tolerances from IT6- Rigid interfaces between head and cartridge for stable, vibration-free boring- Coolant through the toolApplication AreaFine boring, Hole tolerance: IT6, Diameter range 361267 mm (1.41749.882 inch)
| Through Hole Function Property | Yes |
| Standards Met | ISO26623-1 |
| Functional Length | 56mm |
| Body Material | Steel |
| Tool Cutting Edge Angle | 92\u00b0 |
| Minimum Cutting Diameter | 47.45mm |
| Connection Diameter | 40mm |
| Maximum Cutting Diameter | 48.55mm |
| Body Diameter | 1.57in |
| CoroPak | 103 |
| Unit System | Metric |
| MFR Part No. | 7323220290444 |
| Weight | 0.57kg |
| Maximum Adjustment Limit | 0.55mm |
| Cutting Diameter | 48mm |
